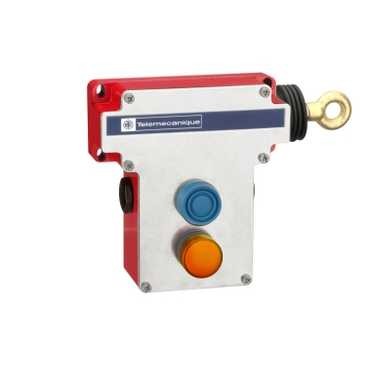

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 导管入口 | PG13.5 |
| 深度 | 105mm |
| IP等级 | IP65 |
| 长度 | 142mm |
| 最大交流电压 | 240V |
| 最大电流 | 0.27 (dc) A, 3 (ac) A |
| 最大直流电压 | 250V |
| 最高工作温度 | +70°C |
| 最大绳跨度 | 50m |
| 最低工作温度 | -25°C |
| 正常状态配置 | 2NO/2NC |
| 电缆入口数 | 3 |
| 极点配置 | 4P |
| 进线口尺寸 | PG13.5 |
| 宽度 | 229mm |
| 执行器 | Cable |
| product certifications | CSAUL |
| vibration resistance | 10 gn (f = 10...300 Hz) conforming to EN/IEC 60068-2-6 |
| product weight | 1.47 kg |
| [Ie] rated operational current | 3 A at 240 V AC-15, A600 conforming to EN/IEC 60947-5-1 appendix A0.27 A at 250 V DC-13, Q600 conforming to EN/IEC 60947-5-1 appendix A |
| trigger cable maximum length | 70 m |
| cable entry | 3 plain holes for Pg 13.5 cable gland |
| light block supply | Direct |
| height | 142 mm |
| trigger cable anchor point | RH side |
| [Ithe] conventional enclosed thermal current | 10 A |
| device short name | XY2CE |
| shock resistance | 50 gn (11 ms) conforming to EN/IEC 60068-2-27 |
| product or component type | Latching emergency stop rope pull switch |
| width | 229 mm |
| class of protection against electric shock | Class I conforming to EN/IEC 61140Conforming to NF C 20-030 |
| mechanical durability | 10000 cycles |
| safety reliability data | B10d = 50000 (value given for a life time of 20 years limited by mechanical or contact wear) |
| resistance across terminals | <= 25 MOhm conforming to NF C 93-050 method A<= 25 MOhm conforming to EN/IEC 60255-7 category 3 |
| protective treatment | TC |
| safety level | Can reach SIL 3 conforming to EN/IEC 61508Can reach PL = e conforming to EN/ISO 13849-1 (with the appropriate monitoring system and correctly wired)Can reach category 4 conforming to EN/ISO 13849-1 (with the appropriate monitoring system and correctly wired) |
| contacts type and composition | 2 NO + 2 NC |
| contacts operation | Slow-break |
| range of product | Preventa XY2 |
| housing colour | Red RAL 3000 |
| ambient air temperature for operation | -25...70 °C |
| local signalling | With pilot light |
| IP degree of protection | IP65 |
| tightening torque | 0.8...1.2 N.m |
| [Us] rated supply voltage | 130 V24 V48 V |
| positive opening | With conforming to EN/IEC 60947-5-1 section 3 |
| reset | By booted pushbutton |
| terminals description ISO n °1 | (11-12)NC(21-22)NC(33-34)NO |
| [Uimp] rated impulse withstand voltage | 6 kV |
| short circuit protection | 10 A cartridge fuse, gG conforming to EN/IEC 60269 |
| standards | EN/IEC 60947-5-1EN/IEC 60947-5-5EN/ISO 13850UL 508 |
| [Ui] rated insulation voltage | 400 V, degree of pollution: 3 conforming to EN/IEC 60947-1300 V conforming to CSA C22-2 No 14300 V conforming to UL 508 |
| depth | 105 mm |
| ambient air temperature for storage | -40...70 °C |
| operational power in W | 15 W DC-13, operating rate: 3600 cyc/h, electrical durability: 1000000 cycles, Ue = 24 V, load factor: 0.5, inductive load conforming to EN/IEC 60947-5-1 appendix C23 W DC-13, operating rate: 3600 cyc/h, electrical durability: 1000000 cycles, Ue = 48 V, load factor: 0.5, inductive load conforming to EN/IEC 60947-5-1 appendix C30 W DC-13, operating rate: 3600 cyc/h, electrical durability: 1000000 cycles, Ue = 120 V, load factor: 0.5, inductive load conforming to EN/IEC 60947-5-1 appendix C |
| distance between cable supports | 5 m |
| number of cables | 1 |
| connections - terminals | Screw clamp terminal 1 x 0.5...2 x 1.5 mm ² |
