Schneider Electric

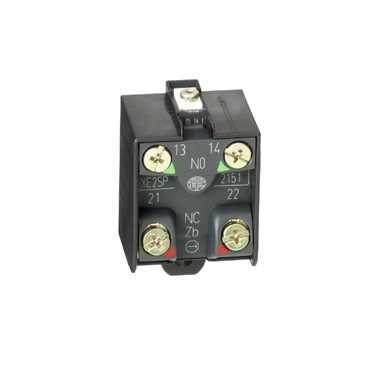

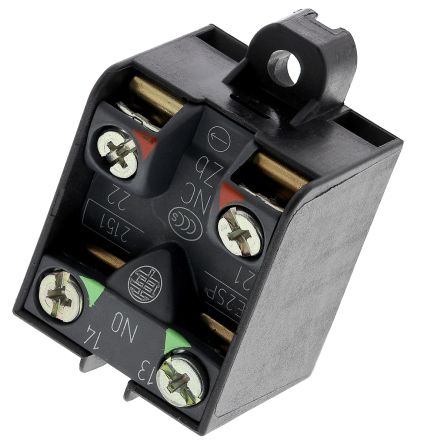

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | 785901298304, XE2SP2151 |
| 子类别 | Contact Blocks |
| 交货期 | 14 Days |
| product or component type | Limit switch contact block |
| electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm ² |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| resistance across terminals | < 25 mOhm conforming to IEC 60255-7 category 3 |
| series name | Standard format |
| associated body | ZCD21ZCKJ1ZCKJ1DZCKL1ZCKM1ZCKS1ZCP21 |
| electrical durability | 5000000 cycles, DC-13 120 V, 4 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13 24 V, 10 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13 48 V, 7 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| contacts material | Silver plated contacts |
| minimum actuation speed | 0.01 mm/s |
| short circuit protection | 10 A by gG cartridge fuse |
| [Ui] rated insulation voltage | 500 V degree of pollution 3 conforming to IEC 60947-1300 V conforming to CSA C22-2 No 14300 V conforming to UL 508 |
| product compatibility | XCKDXCKJXCKLXCKMXCKPXCKSXCR |
| contact code designation | Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix AA300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A |
| device short name | XE2S |
| positive opening | With |
| contacts insulation form | Zb |
| number of poles | 2 |
| contacts type and composition | 1 NO + 1 NC |
| contacts operation | Snap action |
| range of product | OsiSense XC |
| 触点类型 | 快速动作 |
| 最大交流电压 | 240V |
| 最大电流 | 3 A |
| 最高工作温度 | +70°C |
| 最低工作温度 | -25°C |
| 最大直流电压 | 250V |
| 刀和掷配置 | DP |
| 外壳材料 | 塑料 |
| 正常状态配置 | 常开/常闭 |
| 接端类型 | 螺钉 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
