Schneider Electric

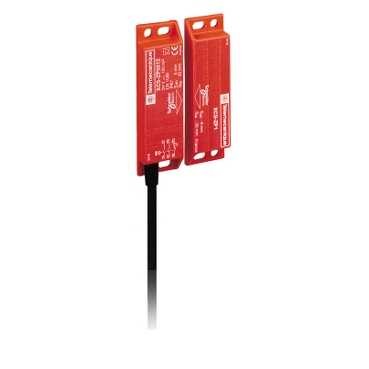

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | 785901942863, XCSDMP70010 |
| 子类别 | Switch Safety Interlock |
| 交货期 | 14 Days |
| RoHS指令 | Not Applicable |
| 开关类型 | Saftey |
| product certifications | BGCSAUL |
| vibration resistance | 10 gn (f = 10...150 Hz) conforming to IEC 60068-2-6 |
| product weight | 0.18 kg |
| cable material | PVC |
| [Ie] rated operational current | <= 100 A |
| contacts material | Rhodium |
| insulation resistance | 1000 MOhm |
| design | Rectangular, standard |
| switching capacity in mA | 0.1...100 mA |
| standards | CSA C22-2 No 14EN/IEC 60204-1EN/IEC 60947-5-1EN/ISO 12100UL 508 |
| shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| maximum switching voltage | 100 V DC |
| product or component type | Coded magnetic switch |
| sensitivity to magnetic fields | >= 0.3 mT |
| cable composition | 6 x 0.25 mm ² |
| class of protection against electric shock | Class II conforming to IEC 60536 |
| safety reliability data | B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear) |
| [Sa] assured operating distance | 8 mm |
| component name | XCSDMP |
| resistance across terminals | 10 Ohm |
| protective treatment | TH |
| switching frequency | 150 Hz |
| size | 88 x 25 x 13 mm |
| safety level | Can reach category 4 (with the appropriate monitoring system and correctly wired) conforming to EN/ISO 13849-1Can reach PL = e (with the appropriate monitoring system and correctly wired) conforming to EN/ISO 13849-1Can reach SIL 3 (with the appropriate monitoring system and correctly wired) conforming to EN/IEC 61508 |
| contacts type and composition | 2 NC + 1 NO |
| contacts operation | 1 NC staggered |
| range of product | Preventa Safety detection |
| ambient air temperature for operation | -25...85 °C |
| material | Plastic |
| IP degree of protection | IP66 conforming to IEC 60529IP67 conforming to IEC 60529 |
| approach directions | 3 directions |
| [Sar] assured tripping distance | 20 mm |
| enclosure material | Thermoplastic PBT |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to EN/IEC 60947-5-1 |
| [Ue] rated operational voltage | 24 V DC |
| electrical connection | Pre-cabled |
| short circuit protection | 500 mA external cartridge fuse type gG (gl) |
| cable length | 10 m |
| [Ui] rated insulation voltage | 100 V DC |
| ambient air temperature for storage | -40...85 °C |
| breaking capacity | <= 10 VA |
| number of poles | 3 |
| electrical durability | 1200000 cycles |
