| Type | Description |
|---|---|
| product certifications | CSAUL |
| head type | Rotary head |
| head material | Zamak |
| wire insulation material | PvR |
| switch actuation | By 30 ° cam |
| body type | Fixed |
| standards | CSA C22-2 No 14EN 60947-5-1IEC 60947-5-1UL 508 |
| device short name | XCMD |
| contacts insulation form | Zb |

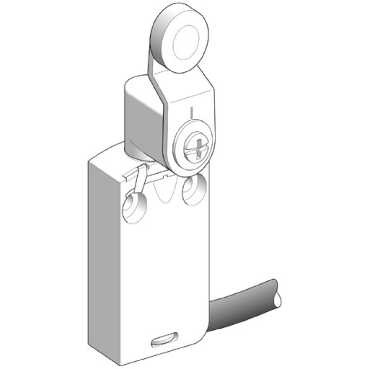

| product or component type | Limit switch |
| series name | Standard format |
| cable composition | 5 x 0.75 mm ² |
| electrical durability | 5000000 cycles, DC-13, 120 V, 1 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13, 24 V, 3 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13, 48 V, 2 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| fixing mode | By the body |
| type of approach | Lateral approach 2 directions |
| type of operator | Spring return roller lever metal |
| contacts type and composition | 1 NC + 1 NO |
| contacts operation | Snap action |
| range of product | OsiSense XC |
| ambient air temperature for operation | -25...70 °C |
| mechanical durability | 10000000 cycles |
| material | Metal |
| body material | Zamak |
| contact code designation | B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A |
| sensor design | Miniature |
| movement of operating head | Rotary |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1 |
| electrical connection | Removable cable connector |
| short circuit protection | 6 A by gG cartridge fuse |
| minimum force for tripping | 0.1 N |
| [Ui] rated insulation voltage | 300 V degree of pollution 3 conforming to CSA C22-2 No 14300 V degree of pollution 3 conforming to UL 508400 V degree of pollution 3 conforming to IEC 60947-5-1 |
| maximum actuation speed | 1.5 m/s |
| positive opening minimum force | 0.5 N |
| positive opening | With |
| number of poles | 2 |
| cable length | 3 m |
