Schneider Electric

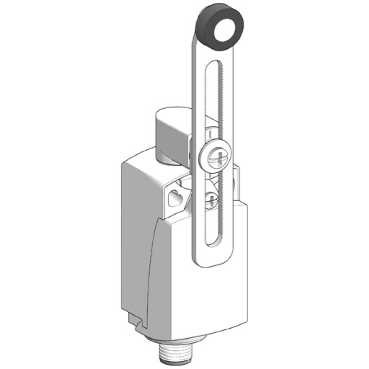

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 电压额定值AC | 240 V |
| 操作力 | 0.1 N |
| 额定电流 | 3 A |
| IP等级 | IP 66, IP 67 |
| 安装 | Cable |
| 触点形式 | 1 NC / 1 NO |
| 端接类型 | 4-Pin Micro Connector |
| 直流电额定电压 | 250 V |
| NEMA号 | 1, 2, 4, 6, 12, 13 |
| 执行器 | Roller Lever |
| product certifications | CCCCSAUL |
| vibration resistance | 25 gn (f = 10...500 Hz) conforming to IEC 60068-2-6 |
| head type | Rotary head |
| head material | Zamak |
| product weight | 0.15 kg |
| switch actuation | By 30 ° cam |
| body type | Fixed |
| repeat accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
| height | 65 mm |
| width | 31 mm |
| device short name | XCKP |
| contacts insulation form | Zb |
| shock resistance | 50 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| product or component type | Limit switch |
| minimum torque for tripping | 0.1 N.m |
| series name | Standard format |
| class of protection against electric shock | Class IIClass II conforming to NF C 20-030 |
| fixing mode | By the body |
| type of approach | Lateral approach 2 directions |
| resistance across terminals | <= 25 MOhm conforming to IEC 60255-7 category 3 |
| protective treatment | TC |
| contacts type and composition | 1 NC + 1 NO |
| contacts operation | Snap action |
| range of product | OsiSense XC |
| ambient air temperature for operation | -25...70 °C |
| mechanical durability | 10000000 cycles |
| material | Plastic |
| IP degree of protection | IP66 conforming to IEC 60529IP67 conforming to IEC 60529 |
| body material | Plastic |
| contact code designation | Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix AA300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A |
| type of operator | Spring return roller lever thermoplastic (variable length) |
| sensor design | Compact |
| IK degree of protection | IK04 conforming to EN 50102 |
| movement of operating head | Rotary |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| electrical connection | Male connector M12, 4 pins |
| short circuit protection | 10 A by gG cartridge fuse |
| positive opening minimum torque | 0.25 N.m |
| standards | CSA C22-2 No 14EN 60204-1EN 60947-5-1IEC 60204-1IEC 60947-5-1UL 508 |
| [Ui] rated insulation voltage | 500 V degree of pollution 3 conforming to IEC 60947-1300 V conforming to CSA C22-2 No 14300 V conforming to UL 508 |
| depth | 30 mm |
| ambient air temperature for storage | -40...70 °C |
| maximum actuation speed | 1.5 m/s |
| positive opening | With |
| number of poles | 2 |
| electrical durability | 5000000 cycles, DC-13, 120 V, 4 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13, 24 V, 10 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13, 48 V, 7 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
