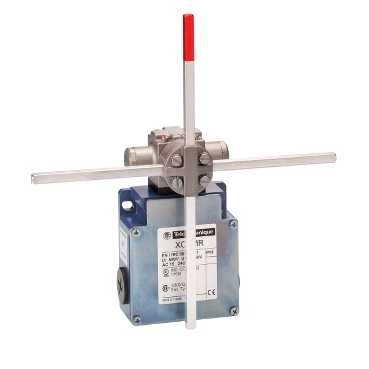

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| product certifications | CCCCECSAUL |
| vibration resistance | 25 gn (f = 10...500 Hz) conforming to EN/IEC 60068-2-6 |
| head type | Rotary head |
| head material | Zamak |
| product weight | 0.55 kg |
| switch actuation | By any moving part |
| cable entry | 3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 7...13 mm |
| body type | Fixed |
| device short name | XCKMR |
| maximum displacement angle | 180 °-180 ° |
| contacts insulation form | Zb |
| contact block per direction (control circuit) | 1 per direction |
| shock resistance | 50 gn conforming to EN/IEC 60068-2-27 |
| product or component type | Limit switch |
| minimum torque for tripping | 0.5 N.m |
| series name | Special format |
| class of protection against electric shock | Class I conforming to IEC 60536 |
| fixing mode | By the body |
| type of approach | Lateral approach 2 directions |
| resistance across terminals | <= 25 MOhm conforming to IEC 60255-7 category 3 |
| protective treatment | TC |
| contacts type and composition | 2 x (2 NC) |
| contacts operation | Slow-break, staggered |
| range of product | OsiSense XC |
| ambient air temperature for operation | -25...70 °C |
| mechanical durability | 2000000 cycles |
| minimum actuation speed | 6 m/min |
| material | Metal |
| number of steps | 5 electrical positions |
| product specific application | For hoisting and mechanical handling applications |
| IP degree of protection | IP66 conforming to EN/IEC 60529 |
| body material | Zamak |
| contact code designation | A300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix AQ150, DC-13 (Ue = 125 V, Ie = 0.55 A) conforming to EN/IEC 60947-5-1 appendix A |
| type of operator | Stay put crossed rods lever metal (square rod 6 mm, L = 200 mm) |
| IK degree of protection | IK07 conforming to EN 50102 |
| movement of operating head | Rotary |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-16 kV conforming to IEC 60664 |
| electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm ² |
| short circuit protection | 10 A by gG cartridge fuse |
| positive opening minimum torque | 0.75 N.m |
| standards | CSA 22-2 No 14EN/IEC 60947-5-1UL 508 |
| [Ui] rated insulation voltage | 300 V conforming to CSA C22-2 No 14300 V conforming to UL 508500 V degree of pollution 3 conforming to EN/IEC 60947-1 |
| ambient air temperature for storage | -40...85 °C |
| maximum actuation speed | 1.5 m/s actuation point on the rod between 65 and 95 mm |
| positive opening | With |
| number of poles | 4 |
