Schneider Electric

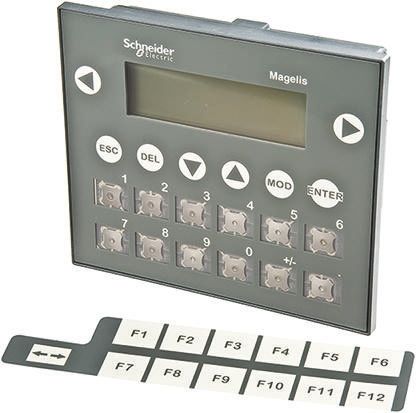

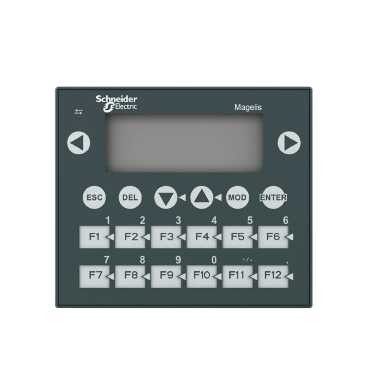

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工作电源电压 | 5 V |
| 系列 | XBT R |
| product certifications | ATEX zone 2/22CSA Class 1 Division 2UL Class 1 Division 2UL 1604 |
| vibration resistance | +/- 3.5 mm (f = 2...8.45 Hz)1 gn (f = 8.45...150 Hz) |
| product weight | 0.55 kg |
| supply | From PLC (terminal port) |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529IP65 (front panel) conforming to IEC 60529 |
| height | 118 mm |
| range compatibility | Modicon M340Modicon PremiumModicon TSX MicroTwido |
| downloadable protocols | ModbusUni-TE |
| standards | CSA C22-2 No 14IEC 60068-2-27IEC 60068-2-6IEC 61131-2UL 508 |
| front material | PPT |
| shock resistance | 15 gn for 11 ms |
| display type | Matrix backlit LCD |
| display material | Polyester |
| product mounting | Flush mounting |
| fixing mode | By 4 spring clips |
| width | 137 mm |
| character font | Chinese (simplified Chinese)CyrillicGreekKatakanaLatin |
| range of product | Magelis XBTR |
| ambient air temperature for operation | 0...55 °C |
| software designation | Vijeo Designer Lite |
| marking | CE |
| NEMA degree of protection | NEMA 4X (front panel) for outdoor use |
| software type | Configuration software |
| [Us] rated supply voltage | 5 V DC |
| integrated connection type | Serial link: female RJ45, asynchronous transmission mode (RS232C/RS485)point to point topology |
| operating system | Windows |
| number of customisable keys | 12 |
| messages display capacity | 1 line of 5 characters minimum4 lines of 20 characters maximum |
| cut-out dimensions | 119.6 (+/- 0.5) x 105.2 (+/- 0.4) mm |
| number of key | 20 |
| display resolution | 122 x 32 pixels |
| display colour | Green |
| number of pages | 200 application pages256 alarm pages |
| relative humidity | 0...85 % without condensation |
| memory capacity | 512 kB |
| product or component type | Small panel with keypad |
| keypad material | Polyester |
| realtime clock | Access to the PLC real-time clock |
| memory type | Flash |
| depth | 78 mm |
| ambient air temperature for storage | -20...60 °C |
| number of fixed keys | 8 |
| 显示颜色 | 颜色 |
| 制造商系列 | XBT R |
| 端口数目 | 1 |
| 功能键数目 | 20 |
| 显示器类型 | LCD |
| 键盘类型 | 数字键盘 |
| 显示分辨率 | 122 x 32pixels |
| 电源电压 | 5 V 直流 |
| 危险区认证 | ATEX |
| 背光 | 是 |
| 宽度 | 118mm |
| 深度 | 37mm |
| 长度 | 137mm |
| 显示器尺寸 | 4 行 x 20 个字符 |
| 端口类型 | 以太网、RS232、RS485 |
