Schneider Electric

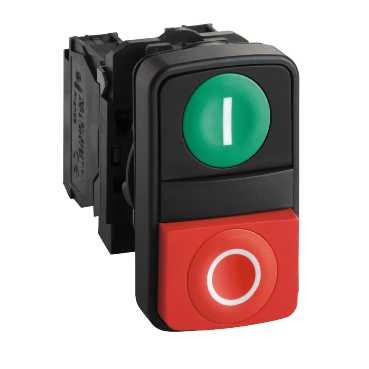

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 额定电流 | 1.2 A, 0.1 A |
| 端接类型 | Screw |
| 直流电额定电压 | 600 V |
| 外壳材料 | Plastic |
| 宽度 | 30 mm |
| 执行器 | Rectangular |
| 安装风格 | Panel |
| 产品 | Standard Switches |
| 材质 | Plastic |
| 帽颜色 | Green, Red |
| NEMA号 | 4X, 13 |
| 触点电镀 | Silver Alloy |
| 电压额定值AC | 600 V |
| 安装孔直径为8mm | 22 mm |
| 体形状 | Rectangular |
| 触点形式 | SPST |
| 长度 | 59 mm |
| 产品特点 | Green cap with white "I", red cap with white "O" |
| 安装类型 | Flush |
| 颜色 | Black |
| 系列 | X5B |
| 身高 | 50 mm |
| 安装孔 | Rectangle |
| mounting diameter | 22 mm |
| product weight | 0.053 kg |
| shape of signaling unit head | Rectangular |
| colour of marking | Black marking when white capsWhite marking when green, red or black caps |
| contacts usage | Standard contacts |
| height | 50 mm |
| operators description | Green ''I'' - red ''O'' |
| operating travel | 1.5 mm (NC changing electrical state)2.6 mm (NO changing electrical state)4.3 mm (total travel) |
| device short name | XB5 |
| resistance to high pressure washer | 7000000 Pa at 55 °C,distance: 0.1 m |

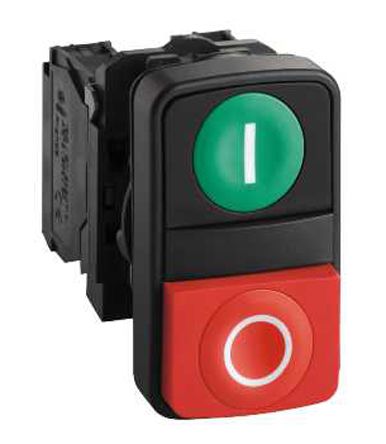

| product or component type | Complete double-headed pushbutton |
| connections - terminals | Screw clamp terminals: <= 2 x 1.5 mm ² with cable end conforming to EN/IEC 60947-1Screw clamp terminals: >= 1 x 0.22 mm ² without cable end conforming to EN/IEC 60947-1Spring terminals: <= 2 x 1.5 mm ² with cable end conforming to EN/IEC 60947-1Spring terminals: >= 1 x 0.22 mm ² without cable end conforming to EN/IEC 60947-1 |
| width | 30 mm |
| bezel material | Plastic |
| shape of screw head | Cross head compatible with JIS No 1 screwdriverCross head compatible with Philips no 1 screwdriverCross head compatible with pozidriv No 1 screwdriverSlotted head compatible with flat |
| type of operator | Spring return |
| contacts type and composition | 1 NO + 1 NC |
| contacts operation | Slow-break |
| range of product | Harmony XB5 |
| operating force | 3.5 N (NC changing electrical state)3.8 N (NO changing electrical state) |
| mechanical durability | 1000000 cycles |
| tightening torque | 0.8...1.2 N.m conforming to EN 60947-1 |
| terminals description ISO n °1 | (13-14)NO(21-22)NC |
| operator profile | Green flush, white IRed projecting, white O |
| depth | 59 mm |
| fixing collar material | Plastic |
| positive opening | With positive opening conforming to EN/IEC 60947-5-1 appendix K |
| 按钮执行 | 弹簧复位 |
| 按钮类型 | 嵌入式 |
| 系列 | XB5 |
| 按钮形状 | 矩形 |
| 最高工作温度 | +70°C |
| 安装类型 | 面板安装 |
| 触点配置 | 常开/常闭 |
| 按钮材料 | 塑料 |
| 按钮颜色 | 绿色，红色 |
| 切面直径 | 22.5mm |
| 最大直流电压 | 600V |
| 最低工作温度 | -25°C |
| IP 防护等级 | IP66 |
| 最大交流电压 | 600V |
| 主体材料 | 塑料 |
| 接端类型 | 螺钉 |
| 最大电流 | 0.55 A @ 125 V 直流，6 A @ 120 V 交流 |
