Schneider Electric

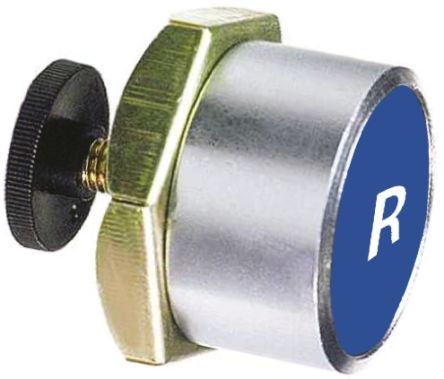

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 按钮颜色 | Blue |
| 头类型 | Round |
| IP等级 | IP66 |
| 最高工作温度 | +70°C |
| 最低工作温度 | -25°C |
| 安装类型 | Panel |
| 面板开孔直径 | 22mm |
| product certifications | UL listed |
| mounting diameter | 22 mm |
| product weight | 0.04 kg |
| shape of signaling unit head | Round |
| height | 29 mm |
| operating travel | 10 mm |
| device short name | XB5 |
| resistance to high pressure washer | 7000000 Pa at 55 °C,distance: 0.1 m |
| product or component type | Complete manual overload reset pushbutton |
| class of protection against electric shock | Class II conforming to IEC 60536 |
| width | 29 mm |
| ambient air temperature for storage | -40...70 °C |
| bezel material | Plastic |
| protective treatment | TH |
| range of product | Harmony XB5 |
| ambient air temperature for operation | -25...70 °C |
| NEMA degree of protection | NEMA 4X |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 50102 |
| activating distance | 120...257 mm |
| operator profile | Blue flush, white R |
| standards | EN/IEC 60947-1 |
| depth | 257 mm |
| fixing collar material | Plastic |
| 按钮类型 | 圆形 |
| 系列 | XB5 |
| 最高工作温度 | +70°C |
| 安装类型 | 面板安装 |
| 最低工作温度 | -25°C |
| 切面直径 | 22mm |
| 照明 | 否 |
| IP 防护等级 | IP66 |
| 按钮颜色 | 蓝色 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
