Schneider Electric
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 按钮颜色 | Black, Green, White |
| 联系配置 | 3PST-2NO/NC |
| 联系方式包括 | Yes |
| 头类型 | Rectangular |
| IP等级 | IP66, IP69K |
| 最大交流电压 | 600V ac |
| 最大电流 | 0.55 (dc) A, 6 (ac) A |
| 最大直流电压 | 600V dc |
| 最高工作温度 | +70°C |
| 最低工作温度 | -25°C |
| 安装类型 | Panel |
| 正常状态配置 | 2NO/NC |
| 面板开孔直径 | 22mm |
| 极和掷配置 | 3PST |
| 按钮触动 | Spring Return |
| 终端类型 | Screw Clamp |
| mounting diameter | 22 mm |
| product weight | 0.128 kg |
| shape of signaling unit head | Rectangular |
| colour of marking | Black marking when white capsWhite marking when green, red or black caps |
| contacts usage | Standard contacts |
| operators description | Green ''I'' - green ''II'' - red ''STOP'' |
| operating travel | 1.5 mm (NC changing electrical state)2.6 mm (NO changing electrical state)4.3 mm (total travel) |
| device short name | XB4 |
| resistance to high pressure washer | 7000000 Pa at 55 °C,distance: 0.1 m |

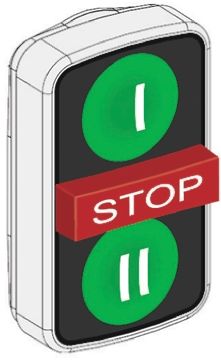

| product or component type | Complete triple-headed pushbutton |
| connections - terminals | Screw clamp terminals: <= 2 x 1.5 mm ² with cable end conforming to EN/IEC 60947-1Screw clamp terminals: >= 1 x 0.22 mm ² without cable end conforming to EN/IEC 60947-1Spring terminals: <= 2 x 1.5 mm ² with cable end conforming to EN/IEC 60947-1Spring terminals: >= 1 x 0.22 mm ² without cable end conforming to EN/IEC 60947-1 |
| bezel material | Chromium plated metal |
| shape of screw head | Cross head compatible with JIS No 1 screwdriverCross head compatible with Philips no 1 screwdriverCross head compatible with pozidriv No 1 screwdriverSlotted head compatible with flat |
| type of operator | Spring return |
| contacts type and composition | 1 NO + 1 NC |
| contacts operation | Slow-break |
| range of product | Harmony XB4 |
| operating force | 3.5 N (NC changing electrical state)3.8 N (NO changing electrical state) |
| mechanical durability | 1000000 cycles |
| tightening torque | 0.8...1.2 N.m conforming to EN 60947-1 |
| operator profile | Green flush, white IGreen flush, white IIRed projecting, white STOP |
| fixing collar material | Zamak |
| positive opening | With positive opening conforming to EN/IEC 60947-5-1 appendix K |
| 按钮执行 | 弹簧复位 |
| 按钮类型 | 矩形 |
| 系列 | XB4 |
| 最大电流 | 0.55（直流）、6（交流） A |
| 最高工作温度 | +70°C |
| 安装类型 | 面板 |
| 触点配置 | 3PST-2NO/NC |
| 按钮颜色 | 黑色，绿色，白色 |
| 切面直径 | 22mm |
| 最大直流电压 | 600V |
| 最低工作温度 | -25°C |
| IP 防护等级 | IP69K |
| 最大交流电压 | 600V |
| 主体材料 | Metal |
| 接端类型 | 螺旋夹 |
| 照明 | 否 |
