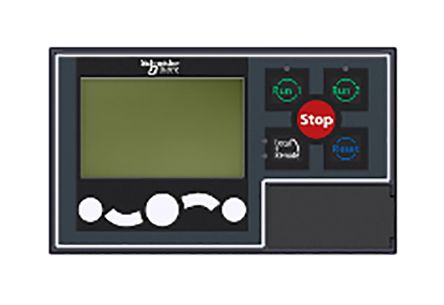

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| product certifications | CECSAC-TickGOSTNOMUL |
| vibration resistance | 4 gn (f = 5...30 Hz) conforming to EN/IEC 60068-2-6 |
| resistance to fast transients | 2 kV, level 3 (shielded access) conforming to EN/IEC 61000-4-4 |
| resistance to electrostatic discharge | 4 kV, level 3 (on contact) conforming to EN/IEC 61000-4-28 kV, level 3 (in open air) conforming to EN/IEC 61000-4-2 |
| supply | Via the controller |
| connector type | RJ45 |
| resistance to radiated fields | 10 V/m, level 3 conforming to EN/IEC 61000-4-3 |
| height | 70 mm |
| [In] rated current | <= 140 mA |
| flame retardance | V2 conforming to UL 94 |
| device short name | LTMCU |
| immunity to radioelectric fields | 10 V, level 3 conforming to EN/IEC 61000-4-6 |
| product weight | 0.4 kg |
| display type | Backlit LCD |
| mounting mode | Flush-mounted |
| width | 117 mm |
| protective treatment | 12 x 24 hour cycles conforming to EN/IEC 60068-2-30 |
| range of product | TeSys T |
| ambient air temperature for operation | -20...60 °C-40...80 °C (storage) |
| local signalling | 4 LED |
| shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| product or component type | Operator control unit |
| relative humidity | 5...95 % |
| fire resistance | 650 °C conforming to EN/IEC 60947-1 |
| IP degree of protection | IP54 conforming to EN 60068-2-27IP54 conforming to IEC 60068-2-27 |
| non-dissipating shock wave | 2 kV (shielded access) conforming to EN/IEC 61000-4-5 |
| standards | CSA 22-2 No 14EN 61131-2IEC 61131-2UL 508 |
| depth | 50 mm |
| permissible power | 1 W |
| 系列 | TeSys T |
| 满足标准 | C-Tick, CE, CSA, CSA C22.2 No 14, EAC, EN 61131-2, EN/IEC 60068-2-27, EN/IEC 60068-2-30, EN/IEC 60068-2-6, EN/IEC 61000-4-4, EN/IEC 61000-4-5, EN/IEC 61000-4-6, IEC 60068-2-27, IEC 61131-2, NOM, UL, UL 508 |
| 额定功率 | 1 W |
| 安装类型 | 嵌入安装 |
| 电流范围 | 最大 |
| 元件类型 | 控制装置 |
| 范围 | TeSys T |
