SCHNEIDER ELECTRIC / TELEMECANIQUE

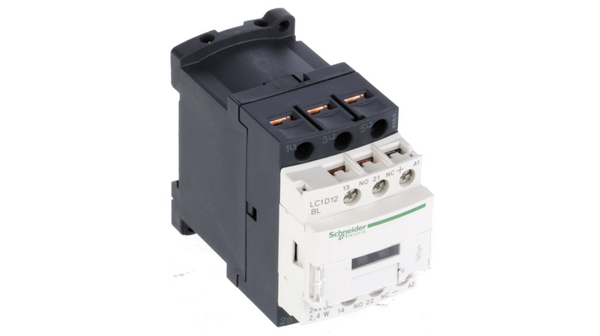

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工作电压 | :24V |
| Switching Current AC1 | :25A |
| Switching Current AC3 | :12A |
| No. of Poles | :3 |
| 联系配置 | :DPCO |
| Contactor Direction | :- |
| Relay Mounting | :DIN Rail |
| Coil Voltage VDC Nom | :24V |
| SVHC | :No SVHC (20-Jun-2013) |
| Breaking Capacity Current AC | :250A |
| Coil Operating Lower Percent Limit | :70% |
| Coil Operating Upper Percent Limit | :125% |
| 线圈类型 | :DC |
| Contact Current DC Max | :12A |
| Contact Current Max | :25A |
| Contact Voltage AC Nom | :600V |
| Contact Voltage DC Max | :24V |
| DC Coil Power | :5.4W |
| 外部深度 | :95mm |
| External Length / Height | :77mm |
| 外宽 | :45mm |
| IP / NEMA Rating | :IP2X |
| 绝缘电压 | :690V |
| Main Contact Current AC1 Max | :25A |
| Main Contact Current AC3 Max | :12A |
| 安装类型 | :DIN Rail |
| Nom Operating Power | :2.4W |
| Operating Temperature Max | :60°C |
| 继电器类型 | :Contactor |
| 系列 | :LC |
| 标准 | :EN60947 - 1 |
| 端接类型 | :Screw |
| Weight (kg) | 0.54 |
| Tariff No. | 85364900 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
