Schneider Electric

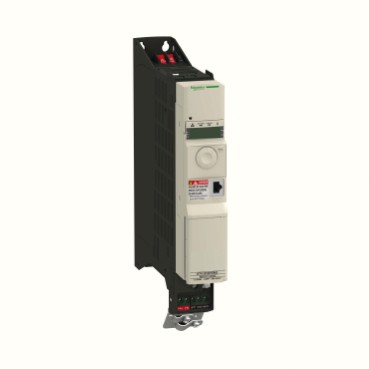

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| CAD绘图 | 3D CAD Model |
| 控制面板 | Yes |
| 额定电流 | 1.5 A |
| 现场总线通讯方式 | ModBus |
| 过滤器包括 | Yes |
| 适用于 | Altivar 32 Series |
| IP等级 | IP31 |
| 输出频率 | 0.1 → 599Hz |
| 第一阶段 | 1 |
| 额定功率 | 0.18 W |
| 电源电压 | 200 → 240 V |
| analogue input number | 3 |
| braking torque | < 170 % with braking resistor |
| speed drive output frequency | 0.5...599 Hz |
| option card | Communication card CANopen daisy chainCommunication card CANopen open styleCommunication card DeviceNetCommunication card Ethernet/IPCommunication card Profibus DP V1 |
| product weight | 2.4 kg |
| noise level | 43 dB conforming to 86/188/EEC |
| sampling duration | AI1, AI2, AI3 2 ms for analog input(s)AO1 2 ms for analog input(s) |
| nominal output current | 1.5 A at 4 kHz 240 V 1 phase 0.18 kW / 0.25 hp |
| operating position | Vertical +/- 10 degree |
| number of addresses | 1...247 for Modbus1...127 for CANopen |
| analogue output type | AO1 software-configurable current 0...20 mA, impedance 800 Ohm, resolution 10 bitsAO1 software-configurable voltage 0...10 V, impedance 470 Ohm, resolution 10 bits |
| pollution degree | 2 conforming to EN/IEC 61800-5-1 |
| insulation | Electrical between power and control |
| standards | EN 55011 class A group 1EN 61800-3 environments 1 category C2EN 61800-3 environments 2 category C2EN/IEC 61800-3EN/IEC 61800-5-1 |
| discrete input type | LI1...LI4 programmable (sink/source) 24...30 V DC, with level 1 PLCLI5 programmable as pulse input 20 kpps 24...30 V DC, with level 1 PLCLI6 switch-configurable PTC probe 24...30 V DCSTO safe torque off 24...30 V DC, impedance 1500 Ohm |
| discrete output number | 3 |
| maximum switching current | R1, R2 on inductive load, 2 A at 250 V AC, cos phi = 0.4,R1, R2 on inductive load, 2 A at 30 V DC, cos phi = 0.4,R1 on resistive load, 3 A at 250 V AC, cos phi = 1,R1 on resistive load, 4 A at 30 V DC, cos phi = 1,R2 on resistive load, 5 A at 250 V AC, cos phi = 1,R2 on resistive load, 5 A at 30 V DC, cos phi = 1, |
| discrete input number | 7 |
| shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| marking | CE |
| motor power kW | 0.18 kW at 200...240 V 1 phase |
| type of connector | 1 RJ45 for Modbus/CANopen on front face |
| width | 45 mm |
| torque accuracy | +/- 15 % |
| analogue output number | 1 |
| supply | Internal supply for reference potentiometer (1 to 10 kOhm), 10.5 V DC +/- 5 %, <= 10 mA for overload and short-circuit protection |
| protection type | Input phase breaks driveOvercurrent between output phases and earth driveOverheating protection driveShort-circuit between motor phases driveThermal protection drive |
| synchronous motor control profile | Vector control without sensor |
| speed range | 1...100 for asynchronous motor in open-loop mode |
| output voltage | <= power supply voltage |
| component name | ATV32 |
| analogue input type | AI1 voltage 0...10 V DC, impedance 30000 Ohm, resolution 10 bitsAI2 bipolar differential voltage +/- 10 V DC, impedance 30000 Ohm, resolution 10 bitsAI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance 250 Ohm, resolution 10 bits |
| minimum switching current | Configurable relay logic 5 mA at 24 V DC |
| speed accuracy | +/- 10 % of nominal slip for 0.2 Tn to Tn torque variation |
| motor slip compensation | Automatic whatever the loadNot available in voltage/frequency ratio (2 or 5 points)Adjustable 0...300 % |
| nominal switching frequency | 4 kHz |
| switching frequency | 2...16 kHz adjustable |
| accuracy | AI1, AI2, AI3 +/- 0.2 % for a temperature of -10...60 °CAI1, AI2, AI3 +/- 0.5 % for a temperature of 25 °CAO1 +/- 1 % for a temperature of 25 °CAO1 +/- 2 % for a temperature of -10...60 °C |
| acceleration and deceleration ramps | SUCUSDeceleration ramp automatic stop DC injectionDeceleration ramp adaptationLinearRamp switching |
| braking to standstill | By DC injection |
| supply frequency | 50...60 Hz (- 5...5 %) |
| ambient air temperature for operation | -10...50 °C without derating50...60 °C with derating factor |
| range of product | Altivar 32 |
| local signalling | 1 LED red presence of drive voltage1 LED blue presence of bluetooth1 LED green presence of CANopen run1 LED red presence of CANopen error1 LED red presence of drive fault |
| supply voltage limits | 170...264 V |
| type of polarization | No impedance for Modbus |
| motor power hp | 0.25 hp at 200...240 V 1 phase |
| method of access | Slave for CANopen |
| product or component type | Variable speed drive |
| IP degree of protection | IP20 conforming to EN/IEC 61800-5-1 |
| EMC filter | Class C2 EMC filter integrated |
| tightening torque | Control 0.5 N.m / 4.4 lb/ftMotor/braking resistor 0.7 N.m / 7.1 lb/ftPower supply 0.6 N.m / 5.3 lb/ft |
| [Us] rated supply voltage | 200...240 V (- 15...10 %) |
| relative humidity | 5...95 % without condensation conforming to IEC 60068-2-35...95 % without dripping water conforming to IEC 60068-2-3 |
| response time | LI1...LI6 8 ms, tolerance +/- 0.7 ms for logic output(s)R1A, R1B, R1C 2 ms for relay output(s)R2A, R2C 2 ms for relay output(s) |
| network frequency limits | 47.5...63 Hz |
| maximum transient current | 2.3 A for 60 s 1 phase 0.18 kW / 0.25 hp |
| electromagnetic compatibility | Conducted radio-frequency immunity test conforming to IEC 61000-4-6 level 3Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 level 4Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 level 3Voltage dips and interruptions immunity test conforming to IEC 61000-4-111.2/50 µs - 8/20 µs surge immunity test conforming to IEC 61000-4-5 level 3 |
| regulation loop | Adjustable PID regulator |
| discrete input logic | LI1...LI6 negative logic (sink), > 19 V (state 0), < 13 V (state 0)LI1...LI6 positive logic (source), < 5 V (state 0), > 11 V (state 0) |
| line current | 2.8 A for 240 V 1 phase 0.18 kW / 0.25 hp3.4 A for 200 V 1 phase 0.18 kW / 0.25 hp |
| communication port protocol | CANopenModbus |
| transient overtorque | 3 % of nominal motor torque |
| prospective line Isc | <= 1 kA, 1 phase |
| physical interface | 2-wire RS 485 for Modbus |
| network number of phases | 1 phase |
| electrical connection | Control screw terminal 0.5...1.5 mm ² / AWG18...AWG14Motor/braking resistor removable screw terminals 1.5...2.5 mm ² / AWG14...AWG12Power supply screw terminal 1.5...4 mm ² / AWG14...AWG10 |
| product destination | Asynchronous motorsSynchronous motors |
| product specific application | Complex machines |
| height | 325 mm |
| asynchronous motor control profile | Voltage/frequency ratio, 2 pointsVoltage/frequency ratio, 5 pointsFlux vector control without sensor - Energy Saving, NoLoad lawFlux vector control without sensor, standardVoltage/frequency ratio - Energy Saving, quadratic U/f |
| depth | 245 mm |
| ambient air temperature for storage | -25...70 °C |
| vibration resistance | 1.5 mm peak to peak (f = 3...13 Hz) conforming to EN/IEC 60068-2-61 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6 |
| assembly style | With heat sink |
| discrete output type | R1A, R1B, R1C configurable relay logic NO/NC, electrical durability 100000 cyclesR2A, R2B configurable relay logic NO, electrical durability 100000 cyclesLO logic |
| transmission frame | RTU for Modbus |
| operating altitude | <= 1000 m without derating1000...2000 m with current derating 1 % per 100 m |
| linearity error | AI1, AI2, AI3 +/- 0.2...0.5 % of maximum valueAO1 +/- 0.3 % |
| apparent power | 0.7 kVA at 240 V 1 phase 0.18 kW / 0.25 hp |
| product certifications | CSAC-TickGOSTNOM 117UL |
