Schneider Electric

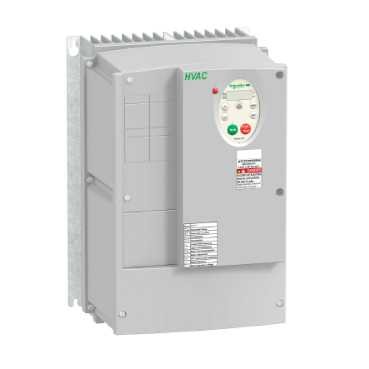

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Ambient Temperature | +40 → +50 °C, -10 → +40 °C |
| 额定电流 | 10.9 A, 8.6 A |
| 现场总线通讯方式 | ModBus |
| 过滤器包括 | Yes |
| 适用于 | Altivar 212 Series |
| IP等级 | IP55 |
| 输出频率 | 0.5 → 200Hz |
| 整体深度 | 208mm |
| 总长 | 340mm |
| 总宽 | 230mm |
| 第一阶段 | 3 |
| 额定功率 | 5.5 kW |
| 电源电压 | 380 → 480 V |
| analogue input number | 2 |
| maximum switching current | 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R)5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R)2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R)2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R) |
| speed drive output frequency | 0.5...200 Hz |
| frequency resolution | 0.1 Hz for display unit0.024/50 Hz for analog input |
| product weight | 9.65 kg |
| noise level | 55 dB conforming to 86/188/EEC |
| sampling duration | 2 ms +/- 0.5 ms (F) - discrete input(s)2 ms +/- 0.5 ms (R) - discrete input(s)2 ms +/- 0.5 ms (RES) - discrete input(s)3.5 ms +/- 0.5 ms (VIA) - analog input(s)22 ms +/- 0.5 ms (VIB) - analog input(s) |
| protection type | Overheating protection for driveShort-circuit between motor phases for driveOvercurrent between output phases and earth for driveOvervoltages on the DC bus for driveBreak on the control circuit for driveAgainst exceeding limit speed for driveLine supply undervoltage for driveAgainst input phase loss for driveThermal protection for motorMotor phase break for motorInput phase breaks for driveThermal power stage for driveLine supply overvoltage and undervoltage for driveWith PTC probes for motor |
| product or component type | Variable speed drive |
| dielectric strength | 3535 V DC between earth and power terminals5092 V DC between control and power terminals |
| connector type | 1 RJ451 open style |
| analogue output type | Switch-configurable voltage: (FM) 0...10 V DC - 7620 Ohm - resolution: 10 bitsSwitch-configurable current: (FM) 0...20 mA - 970 Ohm - resolution: 10 bits |
| device short name | ATV212 |
| pollution degree | IEC 61800-5-1 |
| insulation resistance | >= 1 MOhm at 500 V DC for 1 minute |
| communication service | Monitoring inhibitableRead device identification (43)Read holding registers (03) 2 words maximumTime out setting from 0.1 to 100 sWrite multiple registers (16) 2 words maximumWrite single register (06) |
| standards | EN 55011 class A group 1EN 61800-3EN 61800-3 category C2EN 61800-3 category C3EN 61800-3 environments 1 category C1EN 61800-3 environments 1 category C2EN 61800-3 environments 1 category C3EN 61800-3 environments 2 category C1EN 61800-3 environments 2 category C2EN 61800-3 environments 2 category C3EN 61800-5-1IEC 61800-3IEC 61800-3 category C2IEC 61800-3 category C3IEC 61800-3 environments 1 category C1IEC 61800-3 environments 1 category C2IEC 61800-3 environments 1 category C3IEC 61800-3 environments 2 category C1IEC 61800-3 environments 2 category C2IEC 61800-3 environments 2 category C3IEC 61800-5-1 |
| discrete input type | Programmable (F) 24 V DC, with level 1 PLC - 4700 OhmProgrammable (R) 24 V DC, with level 1 PLC - 4700 OhmProgrammable (RES) 24 V DC, with level 1 PLC - 4700 Ohm |
| discrete output number | 2 |
| continuous output current | 12 A at 380/460 V |
| shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| marking | CE |
| motor power kW | 5.5 kW |
| network number of phases | 3 phases |
| width | 230 mm |
| analogue output number | 1 |
| supply | Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC, +/- 5 % - <= 10 A with overload and short-circuit protectionInternal supply: 24 V (21...27 V) DC - <= 200 A with overload and short-circuit protection |
| number of addresses | 1...247 |
| torque accuracy | +/- 15 % |
| type of cable | IEC cable without mounting kit: 1 wire(s) - 45 °C, copper 90 °C / XLPE/EPRIEC cable without mounting kit: 1 wire(s) - 45 °C, copper 70 °C / PVCUL 508 cable with UL Type 1 kit: 3 wire(s) - 40 °C, copper 75 °C / PVC |
| speed range | 1...10 |
| output voltage | <= power supply voltage |
| option card | Communication card for LonWorks |
| analogue input type | Switch-configurable voltage: (VIA) 0...10 V DC - 24 V max - 30000 Ohm - resolution: 10 bitsSwitch-configurable current: (VIA) 0...20 mA - 250 Ohm - resolution: 10 bitsConfigurable voltage: (VIB) 0...10 V DC - 24 V max - 30000 Ohm - resolution: 10 bitsConfigurable PTC probe: (VIB) 0...6 probes - 1500 Ohm |
| minimum switching current | 3 mA at 24 V DC (configurable relay logic) |
| speed accuracy | +/- 10 % of nominal slip for 0.2 Tn to Tn torque variation |
| motor slip compensation | AdjustableAutomatic whatever the loadNot available in voltage/frequency ratio motor control |
| nominal switching frequency | 12 kHz |
| switching frequency | 12...16 kHz with derating factor6...16 kHz adjustable |
| type of polarization | No impedance |
| accuracy | +/- 0.6 % (VIA) for a temperature variation 60 °C+/- 0.6 % (VIB) for a temperature variation 60 °C+/- 1 % (FM) for a temperature variation 60 °C |
| acceleration and deceleration ramps | Automatic based on the loadLinear adjustable separately from 0.01 to 3200 s |
| braking to standstill | By DC injection |
| supply frequency | 50...60 Hz (- 5...5 %) |
| ambient air temperature for operation | -10...40 °C without derating> 40...50 °C with derating factor |
| range of product | Altivar 212 |
| local signalling | 1 LED - red - DC bus energized |
| supply voltage limits | 323...528 V |
| operating position | Vertical +/- 10 degree |
| motor power hp | 7.5 hp |
| network frequency | 47.5...63 Hz |
| IP degree of protection | IP55 conforming to EN/IEC 60529IP55 conforming to EN/IEC 61800-5-1 |
| EMC filter | Class C2 EMC filter integrated |
| tightening torque | 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)1.3 N.m - 11.5 lb.in (L1/R, L2/S, L3/T) |
| [Us] rated supply voltage | 380...480 V (- 15...10 %) |
| relative humidity | 5...95 % without condensation conforming to IEC 60068-2-35...95 % without dripping water conforming to IEC 60068-2-3 |
| response time | 2 ms +/- 0.5 ms (FM) - analog output(s)7 ms +/- 0.5 ms (FLA, FLC) - discrete output(s)7 ms +/- 0.5 ms (FLB, FLC) - discrete output(s)7 ms +/- 0.5 ms (RY, RC) - discrete output(s) |
| maximum transient current | 13.2 A for 60 s |
| electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3Voltage dips and interruptions immunity test conforming to IEC 61000-4-11Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| regulation loop | Adjustable PI regulator |
| discrete input logic | Positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1)Negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1) |
| line current | 10.9 A for 380 V8.6 A for 480 V |
| data format | 8 bits, 1 stop, odd even or no configurable parity |
| transmission rate | 9600 bps or 19200 bps |
| communication port protocol | APOGEE FLNBACnetLonWorksMETASYS N2Modbus |
| transient overtorque | 120 % of nominal motor torque, +/- 10 % for 60 s |
| prospective line Isc | 22 kA |
| physical interface | 2-wire RS 485 |
| isolation | Electrical between power and control |
| electrical connection | Terminal 2.5 mm ² / AWG 14 (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)Terminal 6 mm ² / AWG 10 (L1/R, L2/S, L3/T) |
| product destination | Asynchronous motors |
| product specific application | Pumps and fans in HVAC |
| height | 340 mm |
| asynchronous motor control profile | Voltage/frequency ratio, 2 pointsVoltage/frequency ratio, 5 pointsFlux vector control without sensor, standardVoltage/frequency ratio - Energy Saving, quadratic U/fVoltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) |
| depth | 208 mm |
| ambient air temperature for storage | -25...70 °C |
| vibration resistance | 1.5 mm (f = 3...13 Hz) conforming to EN/IEC 60068-2-61 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-8 |
| assembly style | With heat sink |
| discrete output type | Configurable relay logic: (FLA, FLC) NO - 100000 cyclesConfigurable relay logic: (FLB, FLC) NC - 100000 cyclesConfigurable relay logic: (RY, RC) NO - 100000 cycles |
| transmission frame | RTU |
| operating altitude | <= 1000 m without derating1000...3000 m (limited to 2000 m for the Corner Grounded distribution network) with current derating 1 % per 100 m |
| linearity error | +/- 0.15 % of maximum value for input (VIA)+/- 0.15 % of maximum value for input (VIB)+/- 0.2 % for output (FM) |
| apparent power | 9.1 kVA for 380 V |
| product certifications | CSAC-TickNOM 117UL |
| environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3Classes 3S2 conforming to IEC 60721-3-3 |
