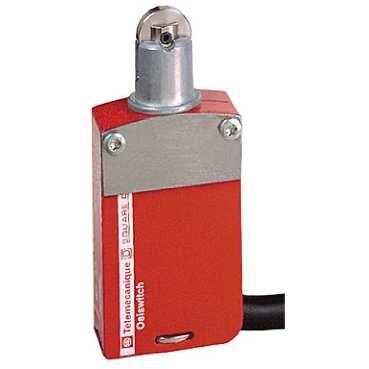

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| product certifications | CSAUL |
| vibration resistance | 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6 |
| head type | Plunger head |
| head material | Zamak |
| product weight | 0.17 kg |
| switch actuation | By 30 ° cam |
| standards | CSA C22-2 No 14EN 1088EN/IEC 60204-1EN/IEC 60947-5-1UL 508 |
| design | Miniature |
| minimum force for tripping | 7 N |
| shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
| product or component type | Safety limit switch |
| repeat accuracy | 0.05 mm on the tripping points |
| CAD overall depth | 16 mm |
| cable composition | 9 x 0.34 mm ² |
| CAD overall height | 70 mm |
| fixing mode | By the body |
| safety reliability data | B10d = 50000000 (value given for a life time of 20 years limited by mechanical or contact wear) |
| component name | XCSM |
| resistance across terminals | <= 25 MOhm conforming to IEC 60255-7 category 3 |
| protective treatment | TC |
| safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| contacts type and composition | 1 NC + 1 NC + 1 NO + 1 NO |
| contacts operation | Snap action |
| range of product | Preventa Safety detection |
| CAD overall width | 30 mm |
| protection technology | Plastic protective cover, secured by 5-lobe socket head safety screw |
| ambient air temperature for operation | -25...70 °C |
| mechanical durability | 10000000 cycles |
| minimum actuation speed | 0.01 m/min |
| material | Metal |
| IP degree of protection | IP68 conforming to IEC 60529IP66 conforming to IEC 60529IP67 conforming to IEC 60529 |
| type of approach | Lateral approach |
| body material | Zamak |
| contact code designation | B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN 60947-5-1B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN 60947-5-1R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A |
| type of operator | Roller plunger |
| IK degree of protection | IK06 conforming to EN 50102 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1 |
| electrical connection | Pre-cabled |
| short circuit protection | 6 A cartridge fuse type gG (gl) |
| cable length | 2 m |
| [Ui] rated insulation voltage | 400 V (degree of pollution: 3) conforming to IEC 60947-5-1300 V conforming to CSA C22-2 No 14300 V conforming to UL 508 |
| ambient air temperature for storage | -40...70 °C |
| maximum actuation speed | 0.5 m/s |
| positive opening minimum force | 35 N |
| positive opening | With NC contact |
| number of poles | 4 |
| class of protection against electric shock | Class I conforming to IEC 6140Conforming to NF C 20-030 |
