Schneider Electric

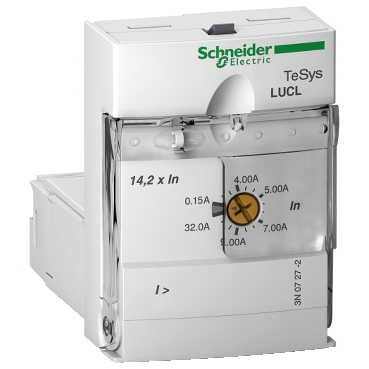

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 组件类型 | Magnetic Control Unit |
| 控制电压 | 110 → 220 V dc, 110 → 240 V ac |
| 电流范围 | 0.35 → 1.4 A |
| 额定功率 | 0.25 kW |
| Range | TeSys U |
| product certifications | CE |
| vibration resistance | 2 gn 5...300 Hz power poles open conforming to IEC 60068-2-64 gn 5...300 Hz power poles closed conforming to IEC 60068-2-6 |
| operating time | 35 ms opening with LUB12 for control circuit35 ms opening with LUB32 for control circuit50 ms closing with LUB12 for control circuit50 ms closing with LUB32 for control circuit60 ms closing with LUB12 for control circuit60 ms closing with LUB32 for control circuit70 ms closing with LUB12 for control circuit70 ms closing with LUB32 for control circuit |
| resistance to fast transients | 2 kV class 3 serial link conforming to IEC 61000-4-44 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4 |
| product weight | 0.135 kg |
| resistance to radiated fields | 10 V/m 3 conforming to IEC 61000-4-3 |
| function available | Manual resetShort-circuit protection |
| control circuit voltage limits | 55 V for AC circuit 110...240 V drop-out55 V for DC circuit 110...240 V drop-out88...242 V for DC circuit 110...240 V in operation88...264 V for AC circuit 110...240 V in operation |
| device short name | LUCL |
| standards | CSA C22-2 No 14 type EEN 60947-6-2IEC 60947-6-2UL 508 type E with phase barrier |
| immunity to radioelectric fields | 10 V conforming to IEC 61000-4-6 |
| information displayed | Average current - setting factory settingAverage current - setting settableCause of last 5 faults - setting settableCurrent in phase - setting settableEarth leakage current - setting settablePhase imbalance - setting settableThermal state of motor - setting settable |
| resistance to electrostatic discharge | 8 kV level 3 in open air conforming to IEC 61000-4-28 kV level 4 on contact conforming to IEC 61000-4-2 |
| product or component type | Magnetic control unit |
| motor power kW | 0.25 kW at < 400...415 V AC 50/60 Hz |
| typical current consumption | 25 mA at 110...220 V DC I rms sealed with LUB3225 mA at 110...240 V AC I rms sealed with LUB32280 mA at 110...220 V DC I maximum while closing with LUB12280 mA at 110...220 V DC I maximum while closing with LUB32280 mA at 110...240 V AC I maximum while closing with LUB12280 mA at 110...240 V AC I maximum while closing with LUB3235 mA at 110...220 V DC I rms sealed with LUB1235 mA at 110...240 V AC I rms sealed with LUB12 |
| mounting mode | Plug-in |
| heat dissipation | 2 W for control circuit with LUB123 W for control circuit with LUB32 |
| safe separation of circuit | 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1 |
| protective treatment | TH conforming to IEC 60068 |
| immunity to voltage dips | 70 % 500 ms conforming to IEC 61000-4-11 |
| ambient air temperature for operation | -25...60 °C with LUCM-25...70 °C with LUCA, LUCB, LUCC, LUCD |
| Language | English - setting factory settingEnglish, French, German, Italian, Spanish - setting settable |
| mounting location | Front side |
| utilisation category | AC-41AC-43AC-44 |
| shock resistance | 10 gn power poles open conforming to IEC 60068-2-2715 gn power poles closed conforming to IEC 60068-2-27 |
| load type | 3-phase motor - cooling: self-cooled - setting factory settingSingle-phase motor |
| IP degree of protection | IP20 front panel and wired terminals conforming to IEC 60947-1IP20 other faces conforming to IEC 60947-1IP40 front panel outside connection zone conforming to IEC 60947-1 |
| control circuit voltage | 110...220 V DC110...240 V AC |
| fire resistance | 650 °C conforming to IEC 60695-2-12960 °C parts supporting live components conforming to IEC 60695-2-12 |
| product compatibility | ASILUFC5ASILUFC51LUFC00LULC031LULC033LULC07LULC08LULC09LULC15 |
| reset | Automatic reset - setting: setting rangeManual - setting: factory settingManual - setting: setting rangeRemote reset - setting: setting range |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-6-2 |
| immunity to microbreaks | 3 ms |
| Time before reset | 120 s - reset manual - setting factory setting1...1000 s - reset manual or automatic reset - setting settable |
| non-dissipating shock wave | 1 kV serial mode conforming to IEC 60947-6-22 kV common mode conforming to IEC 60947-6-2 |
| product specific application | Protection of variable speed drive or soft startsoft stop unit |
| [Ui] rated insulation voltage | 600 V conforming to CSA 22-2 No 14600 V conforming to UL 508690 V conforming to IEC 60947-1 |
| ambient air temperature for storage | -40...85 °C |
| range of product | TeSys U |
| tripping threshold | 14.2 x Ir +/- 20 % |
| operating altitude | 2000 m |
| thermal protection adjustment range | 0.35...1.4 A |
