Eaton / Control Automation

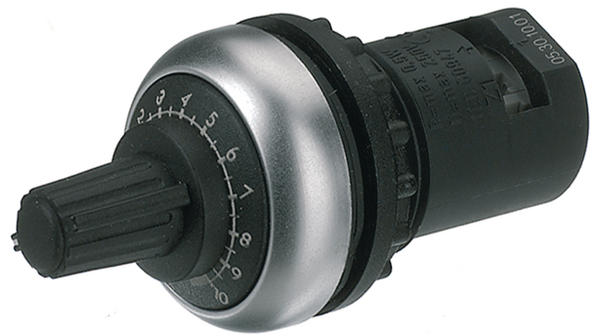

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| MountingType | Panel |
| Power,Rating | 0.5W |
| 电阻 | 10Kilohms |
| Resistance,Tolerance | ±10% |
| SpecialFeatures | DialCombo |
| 锥度 | Linear |
| 类型 | Potentiometer |
| Control accessories type | potentiometer |
| Mounting hole diameter | Ø22.5mm |
| Multiplicity | 1 |
| Switch standard | 22mm |
| Gross weight | 0.03 kg |
| Operating temperature | -25...70°C |
| 密封 | IP66 |
| 引线长度 | max. 250 m separately laid |
| Flush-mounted ø | 22.5 |
| Termination type | Screw Connection |
| 功率 | 0.25 Wmax. |
| Protection rating (front panel) | IP 66 |
| 附件类型 | 电位计 |
| 使用于 | DILET ETR4-70 |
| CAD 绘图 | 3D CAD 模型 |
