Crystek Corporation

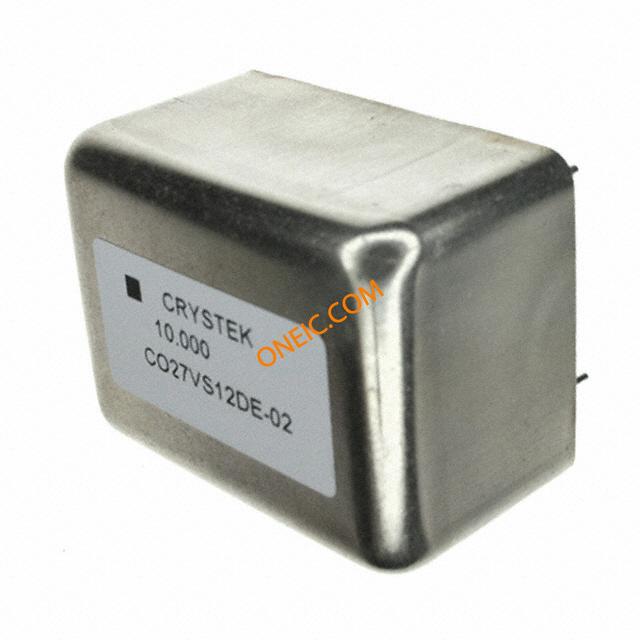

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|

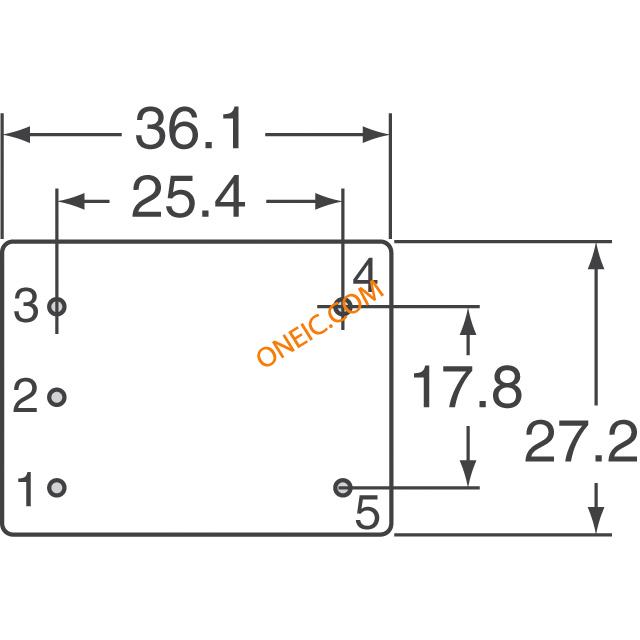

| 尺寸/尺寸 | 1.421" L x 1.071" W (36.10mm x 27.20mm) |
| 安装类型 | Through Hole |
| 封装 | Tray |

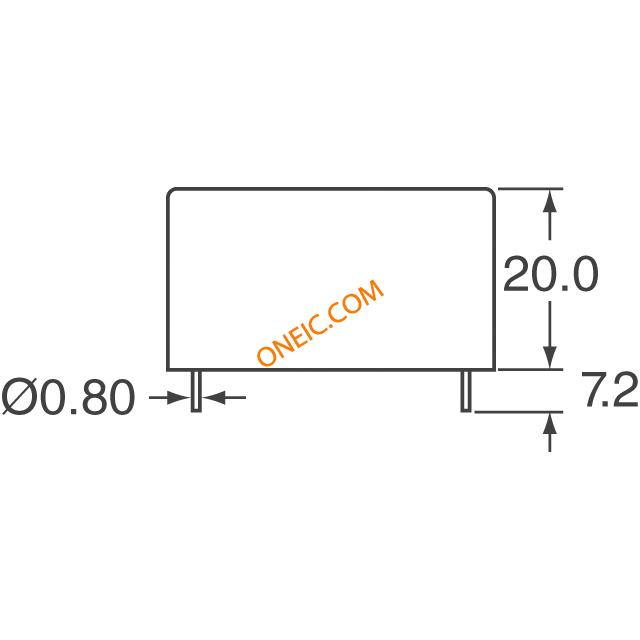

| 身高 | 0.788" (20.00mm) |
| 频率稳定度 | ±200ppb |
| 电流 - 电源（最大）电流 | 110mA |
| 频率 | 10MHz |
| 电压 - 电源 | 12V |
| 标准包装 | 1 |
| 输出 | Sine Wave |
| 工作温度 | -20°C ~ 80°C |
| 类型 | OCXO |
| 其他名称 | 744-1048 |
| 封装/外壳 | 6-DIP, 5 lead (Metal Can) |
| 封装/外壳 | 6-DIP, 5 lead (Metal Can) |
| RoHS指令 | Lead free / RoHS Compliant |
| FrequencyStability | ±200ppm |
| OutputLoad | 50Ohms |
| OutputType | SineWave |
| PackageType | 27×36mmSMD |
| SeriesCode | CO |
| Temperature,Operating,Range | -20to+80°C |
| Voltage,Supply | 12V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
