Crydom

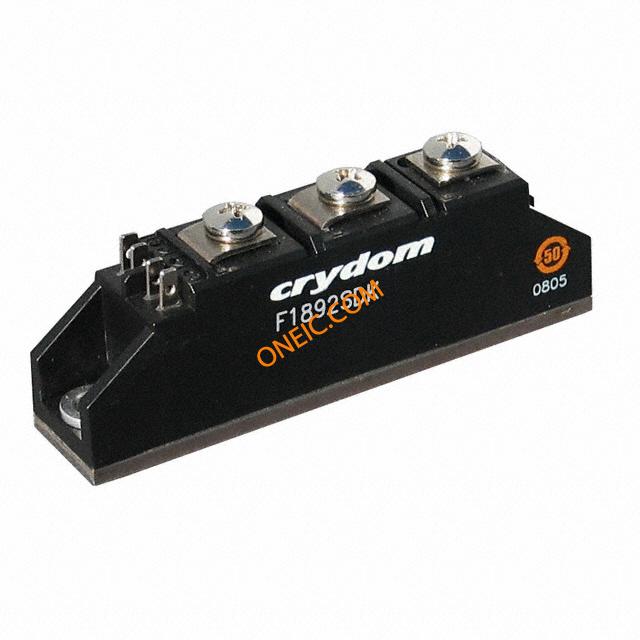

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 子类别 | Thyristor |
| 交货期 | 56 Days |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 91.9 x 20 x 29.9mm |
| 身高 | 29.9mm |
| 长度 | 91.9mm |
| 最大门极触发电流 | 150mA |
| 最大门极触发电压 | 3V |
| 最高工作温度 | +125 °C |
| 最低工作温度 | -40 °C |
| 安装类型 | Screw |
| 包装类型 | TO-240AA |
| 峰值通态电压 | 1.4V |
| 引脚数 | 7 |
| 额定通态平均电流 | 90A |
| 重复峰值正向阻断电压 | 380V |
| 重复峰值反向电压 | 380V |
| 浪涌额定电流 | 1.95kA |
| 晶闸管类型 | SCR |
| 宽度 | 20mm |
| 产品 | Diode Power Modules |
| RoHS | RoHS Compliant |
| Gate Trigger Current Max, Igt | :150mA |
| Current It av | :90A |
| Gate Trigger Voltage Max Vgt | :3V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| Thyristor Case | :Module |
| No. of Pins | :7 |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Current Ib | :90A |
| Current Itsm | :1950A |
| Module Configuration | :Power |
| 工作温度范围 | :-40°C to +125°C |
| Repetitive Reverse Voltage Vrrm Max | :1000V |
| 端接类型 | :Screw |
| Weight (kg) | 0.135 |
| Tariff No. | 85413000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
