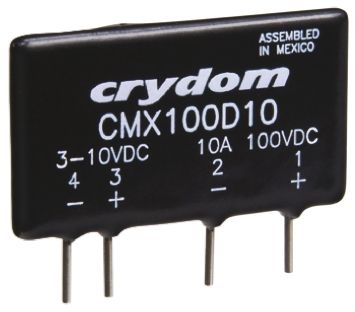

Crydom
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 继电器类型 | Relay |
| 安装类型 | Through Hole |
| 负载电流 | 10A |
| 电压 - 负载 | 0 ~ 100 V |
| 端接类型 | PC Pin |
| 供应商设备封装 | 4-SIP |
| 输出类型 | DC |
| 封装 | Bulk |
| 导通状态电阻 | 10 mOhm |
| 电路 | SPST-NO (1 Form A) |
| 标准包装 | 20 |
| 电压 - 电压 | 20 ~ 28VDC |
| 封装/外壳 | 4-SIP |
| 输出设备 | MOSFET |
| 触点形式 | 1 Form A (SPST-NO) |
| 控制电压范围 | 28 VDC to 28 VDC |
| 额定负载电压 | 0 VDC to 100 VDC |
| 安装风格 | Through Hole |
| 最低工作温度 | - 30 C |
| 封装/外壳 | SIP |
| 产品类型 | PCB Mount |
| 最高工作温度 | + 80 C |
| 额定负载电流 | 10 A |
| RoHS | RoHS Compliant |
| 联系配置 | :(Not Available) |
| 切换模式 | :(Not Available) |
| Relay Terminals | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| Control Voltage Type | :DC |
| Forward Current If | :12mA |
| 输入电流 | :12mA |
| 输入电压 | :20V DC to 28V DC |
| 隔离电压 | :2.5kV |
| Load Current Min | :0mA |
| Load Voltage Max | :60VDC |
| Load Voltage Range | :0V DC to 100V DC |
| On State Resistance Max | :0.018ohm |
| Weight (kg) | 0.015 |
| Tariff No. | 85364900 |
| RoHS指令 | Lead free / RoHS Compliant |
