Crouzet

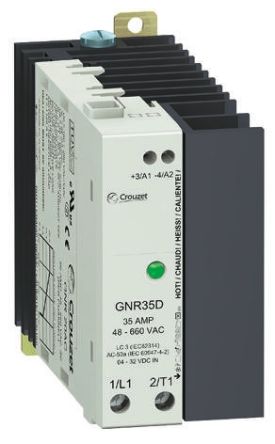

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Solid State Relays - Industrial Mount |
| RoHS | RoHS Compliant |
| 控制电压范围 | 4 VDC to 32 VDC |
| 额定负载电压 | 48 VAC to 600 VAC |
| 额定负载电流 | 45 A |
| 输出设备 | SCR |
| 产品类型 | Industrial Mount |
| 工厂包装数量 | 1 |
| 端接类型 | SMD/SMT |
| 继电器类型 | Relay |
| 安装类型 | DIN Rail |
| 负载电流 | 45A |
| 电压 - 负载 | 48 ~ 600 V |
| 输出类型 | AC, Zero Cross |
| 封装 | Bulk |
| 电路 | SPST-NO (1 Form A) |
| 标准包装 | 10 |
| 电压 - 电压 | 4 ~ 32VDC |
| 其他名称 | 646-1024 |
| 封装/外壳 | Module |
| RoHS指令 | Lead free / RoHS Compliant |
| 最小负载电流 | 100mA |
| 开关类型 | Zero crossing |
| Operating Voltage Min | :48Vrms |
| Operating Voltage Max | :600Vrms |
| Control Voltage DC Min | :4VDC |
| Control Voltage DC Max | :32VDC |
| 联系配置 | :(Not Applicable) |
| 切换模式 | :Zero Crossing |
| Relay Terminals | :Screw |
| Control Voltage Type | :DC |
| Operating Voltage Range | :48Vrms to 600Vrms |
| 峰值浪涌电流 | :750A |
| Weight (kg) | 0.4 |
| Tariff No. | 85364900 |
| Brand/Series | GNR Series |
| 触点形式 | SPST-NO |
| 额定电流 | 45 A |
| Current, Rating | 45 A |
| 功能 | Zero-Switching |
| 针脚数 | 4 |
| 标准 | UL, CSA, CE, TUV |
| 端子 | Finger Safe |
| Voltage, Control | 32 VDC |
| Voltage, Rating | 600 VAC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
