Crouzet

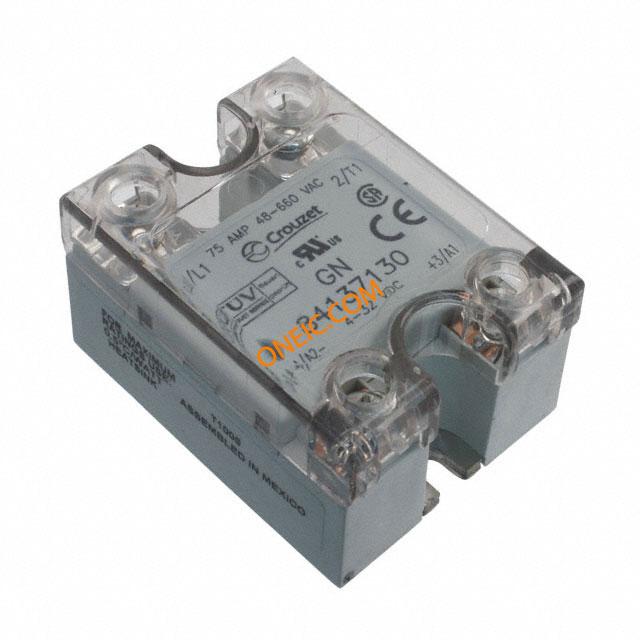

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Solid State Relays - Industrial Mount |
| RoHS | RoHS Compliant |
| 控制电压范围 | 4 VDC to 32 VDC |
| 额定负载电压 | 48 VAC to 660 VAC |
| 额定负载电流 | 75 A |
| 产品类型 | Industrial Mount |
| 工厂包装数量 | 1 |
| 继电器类型 | Relay |
| 安装类型 | Chassis Mount or Panel Mount |
| 负载电流 | 75A |
| 电压 - 负载 | 48 ~ 660 V |
| 端接类型 | Screw Terminal |
| 输出类型 | AC, Zero Cross |
| 封装 | Bulk |
| 电路 | SPST-NO (1 Form A) |
| 标准包装 | 20 |
| 电压 - 电压 | 4 ~ 32VDC |
| 封装/外壳 | Hockey Puck |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 深度 | 58.19mm |
| 身高 | 32.87mm |
| 长度 | 44.45mm |
| 最大控制电压 | 32 V |
| 最大负载电流 | 75 A |
| 最大负载电压 | 280 V |
| 最小负载电流 | 100 mA |
| 输出设备 | SCR |
| 开关类型 | Zero Crossing |
| Operating Voltage Min | :48VAC |
| Operating Voltage Max | :660VAC |
| Control Voltage DC Min | :4VDC |
| Control Voltage DC Max | :32VDC |
| 联系配置 | :- |
| 切换模式 | :Zero Crossing |
| Relay Terminals | :Screw |
| Control Voltage Type | :DC |
| 隔离电压 | :4kV |
| Operating Voltage Range | :48V AC to 660V AC |
| Weight (kg) | 0.105 |
| Tariff No. | 85364900 |
