Crouzet

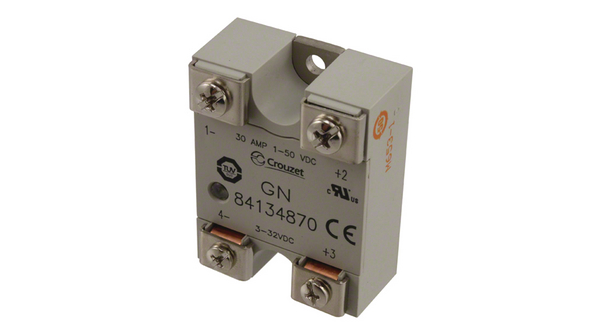

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Solid State Relays - Industrial Mount |
| RoHS | RoHS Compliant |
| 控制电压范围 | 3 VDC to 32 VDC |
| 额定负载电压 | 1 VDC to 50 VDC |
| 额定负载电流 | 30 A |
| 产品类型 | Industrial Mount |
| 工厂包装数量 | 1 |
| 零件号别名 | GN84134870 |
| 继电器类型 | Relay |
| 安装类型 | Chassis Mount or Panel Mount |
| 负载电流 | 30A |
| 电压 - 负载 | 1 ~ 50 V |
| 端接类型 | Screw Terminal |
| 输出类型 | DC |
| 封装 | Bulk |
| 导通状态电阻 | 50 mOhm |
| 电路 | SPST-NO (1 Form A) |
| 标准包装 | 20 |
| 电压 - 电压 | 3 ~ 32VDC |
| 封装/外壳 | Hockey Puck |
| RoHS指令 | Lead free / RoHS Compliant |
| SubCategory | Solid State Relay |
| 安装 | Base Mount |
| 控制电压 | 3-32 VDC |
| MainCategory | Relays |
| 防护罩 | without cover |
| 输出配置 | 1A NO |
| 输出 | F.E.T. |
| 负载电压 | 1-50 VDC |
| 电压 - 负载 | 1 ~ 50 V |
| 导通电阻 | 50 mOhm |
| 系列 | GN DC |
| 继电器类型 | Relay |
| 电路 | SPST-NO (1 Form A) |
| 电压 - 输入 | 3 ~ 32VDC |
| 封装/外壳 | Hockey Puck |
| 输出类型 | DC |
| 负载电流 | 30A |
| Dimensions L x W x H | 57 x 44 x 25 mm |
| 输出电流 | 30 |
| 测试电压 | 4 |
| 输入电压 | 3...32 VDC |
| 设计 | Screw assembly |
| 输出电压 | 1...50 VDC |
| Temperature range | -20...+80 °C |
