Vishay Beyschlag

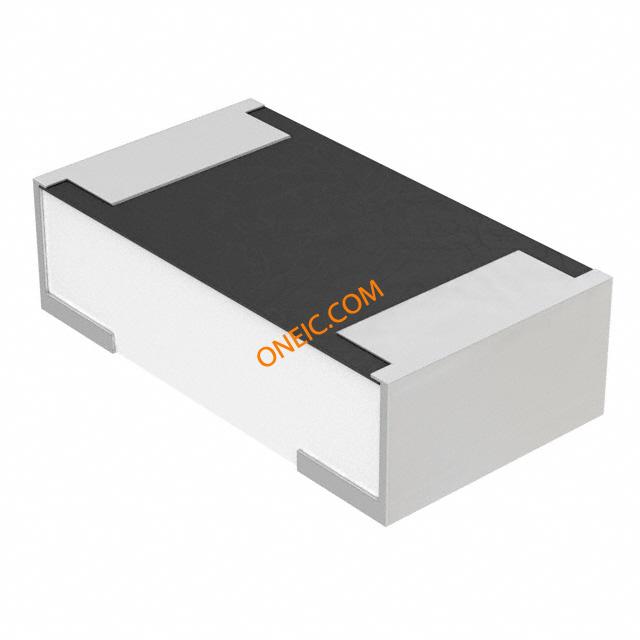

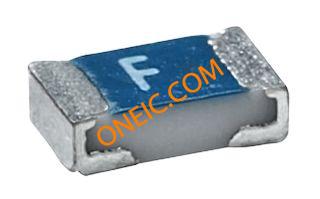

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 时的断路容量额定电压 | 50A |
| 额定电流 | 3.15A |
| 安装类型 | Surface Mount |
| 认证 | IEC, UL |
| 封装 | Tape & Reel (TR) |

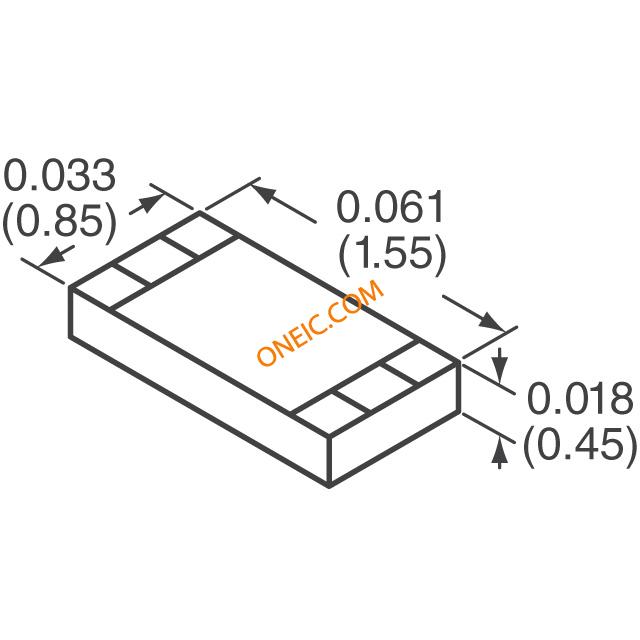

| 尺寸/尺寸 | 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm) |
| 工作温度 | -55°C ~ 125°C |
| 保险丝类型 | Board Mount (Cartridge Style Excluded) |
| 标准包装 | 1,000 |
| 额定电压 - DC | 32V |
| 响应时间 | Fast |
| DC抗冷流0.02欧姆 | 0.029 Ohm |
| 熔化I²t | 0.025 |
| 其他名称 | MFU06033.15TR |
| 封装/外壳 | 0603 (1608 Metric) |
| RoHS指令 | Lead free / RoHS Compliant |
| Voltage Rating V DC | :32V |
| Fuse Current | :3.15A |
| 断能力 | :50A @ 32V DC |
| Blow Characteristic | :Quick Blow |
| 系列 | :MFU |
| Fuse Case Style | :SMD |
| Weight (kg) | 0.0053 |
| Tariff No. | 85361010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
