Rubycon

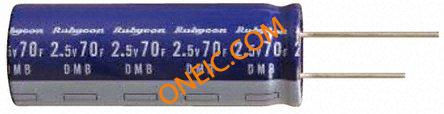

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 电容 | 15F |
| 直径 | 12.5mm |
| 外形尺寸 | 12.5 Dia. x 30mm |
| 等效串联电阻 | 0.1Ω |
| 身高 | 30mm |
| 引线直径 | 0.6mm |
| 引线间距 | 5mm |
| 寿命 | 1000h |
| 最高工作温度 | +70°C |
| 最低工作温度 | -25°C |
| 安装类型 | Through Hole |
| 容差 | ±20% |
| 公差减 | -20% |
| 公差加 | +20% |
| 电压 | 2.5 V dc |
| 电容公差 | :± 20% |
| 额定电压 | :2.5V |
| Capacitor Case Style | :- |
| Capacitor Terminals | :Radial Leaded |
| 引线间距 | :5mm |
| 血沉 | :0.1ohm |
| Operating Temperature Min | :-25°C |
| Operating Temperature Max | :70°C |
| SVHC | :No SVHC (20-Jun-2013) |
| 主体直径 | :12.5mm |
| Capacitor Mounting | :Through Hole |
| External Length / Height | :30mm |
| No. of Pins | :2 |
| 工作温度范围 | :-25°C to +70°C |
| 系列 | :DMB |
| Weight (kg) | 0.005 |
| Tariff No. | 85322200 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
