Vishay BC Components

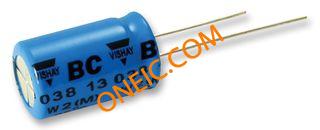

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品范围 | :VISHAY - 038 RSU Series |
| 电容 | :4.7µF |
| 电容公差 | :± 20% |
| 额定电压 | :100V |
| 直径 | :5mm |
| 身高 | :11mm |
| Capacitor Terminals | :Radial Leaded |
| 引线间距 | :2mm |
| Life Time @ Temperature | :2500 hours @ 85°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| SVHC | :No SVHC (20-Jun-2013) |
| AC Ripple Current @ 100Hz | :48mA |
| Capacitor Mounting | :Through Hole |
| External Length / Height | :11mm |
| 引线直径 | :0.5mm |
| 泄漏电流 | :4.7µA |
| No. of Pins | :2 |
| Operating Lifetime | :2500h |
| 工作温度范围 | :-40°C to +85°C |
| Ripple Current AC | :48mA |
| Ripple Current Frequency | :100Hz |
| Ripple Current Temperature | :85°C |
| 系列 | :038 RSU |
| Tolerance + | :0.2% |
| Tolerance - | :0.2% |
| Voltage Rating DC Max | :100V |
| Voltage Rating V DC | :100V |
| Weight (kg) | 0.0001 |
| Tariff No. | 85322200 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
