Vector Electronics

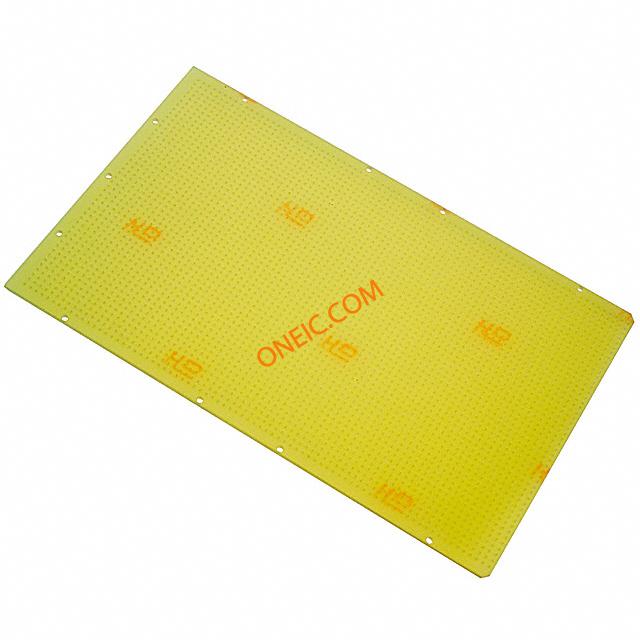

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 原型板类型 | Plugboard, Hard Metric |
| 标准包装 | 1 |
| 间距 | 0.079" (2mm) Grid |
| 尺寸/尺寸 | 6.30" L x 3.94" W (160.0mm x 100.1mm) |
| 板厚度 | 0.062" (1.57mm) 1/16" |
| 孔直径 | 0.025" (0.64mm) |
| 其他名称 | V2015 |
| 板类型 | :PCB, Punchboard, No Clad |
| Board Material | :FR4 Epoxy Glass |
| 外部高度 | :160mm |
| 外宽 | :100mm |
| Board Connector / Footprint | :- |
| Weight (kg) | 0.045 |
| Tariff No. | 85369010 |
| BoardThickness | 0.037 |
| Diameter,Hole | 0.025 |
| Diameter,MountingHole | 0.025" |
| 外形尺寸 | 100mmWx160mmL |
| Flammability | UL94V-0 |
| FlammabilityRating | 94V-0 |
| 材质 | EpoxyGlass |
| NEMAApprovals | FR4 |
| NEMAType | FR4 |
| Pattern | Q |
| Size,Board | 6.3"L×3.94"W×0.062"T |
| Size,Grid | 2×2mm |
| 类型 | Unclad |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
