Vector Electronics

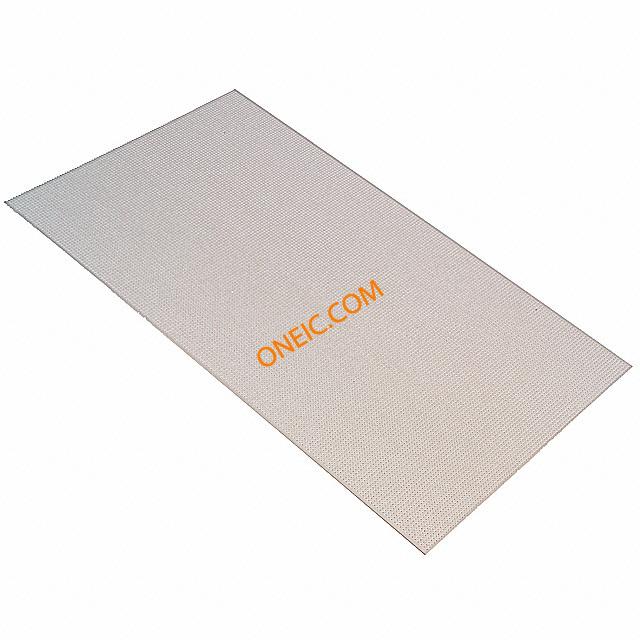

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 原型板类型 | Breadboard, Prepunched Insulating |
| 标准包装 | 1 |
| 间距 | 0.1" (2.54mm) Grid |
| 尺寸/尺寸 | 17.00" L x 10.00" W (431.8mm x 254.0mm) |
| 板厚度 | 0.062" (1.57mm) 1/16" |
| 孔直径 | 0.042" (1.07mm) |
| 其他名称 | V1013 |
| 板类型 | :PCB, Punchboard, No Clad |
| Board Material | :CEM-1 |
| 外部高度 | :431.8mm |
| 外宽 | :254mm |
| Board Connector / Footprint | :- |
| 尺寸 | :10 x 17 |
| Weight (kg) | 0.231 |
| Tariff No. | 85340019 |
| BoardThickness | 0.062 |
| Diameter,Hole | 0.042 |
| Diameter,MountingHole | 0.042" |
| 外形尺寸 | 10.0in.Wx17.0in.L |
| Flammability | UL94V-0 |
| FlammabilityRating | 94V-0 |
| 材质 | EpoxyGlass |
| NEMAApprovals | CEM-1 |
| NEMAType | CEM-1 |
| Pattern | P |
| Size,Board | 17"L×10"W×0.062"T |
| Size,Grid | 0.1×0.1" |
| 类型 | Unclad |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
