Torex Semiconductor Ltd

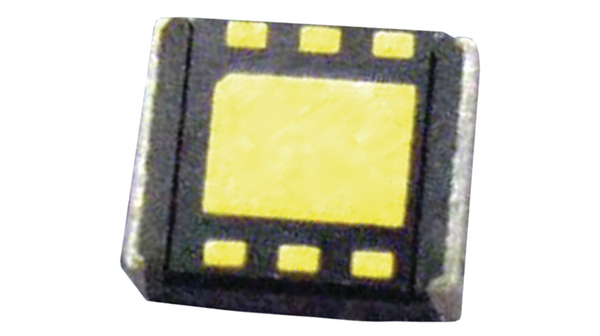

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 输出数 | 1 |
| 产品特点 | With Remote On/Off and UVLO |
| 安装类型 | Surface Mount |
| 类型 | Non-Isolated PoL Module |
| 标准包装 | 3,000 |
| 电压 - 输出1 | 1.8V |
| 尺寸/尺寸 | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.04mm) |
| 效率 | 92% |
| 封装 | Tape & Reel (TR) |
| 电流 - 输出（最大） | 400mA |
| 电压 - 输入（最大） | 6V |
| 封装/外壳 | 1008 (2520 Metric) |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 输入（最小值） | 2V |
| 其他名称 | 893-1174-1 |
| RoHS指令 | Lead free / RoHS Compliant |
| Primary Input Voltage | :6V |
| No. of Outputs | :1 |
| 输出电压 | :1.8V |
| 输出电流 | :400mA |
| Voltage Regulator Case Style | :CL2025 |
| No. of Pins | :8 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| 工作温度范围 | :-40°C to +85°C |
| Weight (kg) | 0.00002 |
| Tariff No. | 85423990 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
