Recom Power Inc

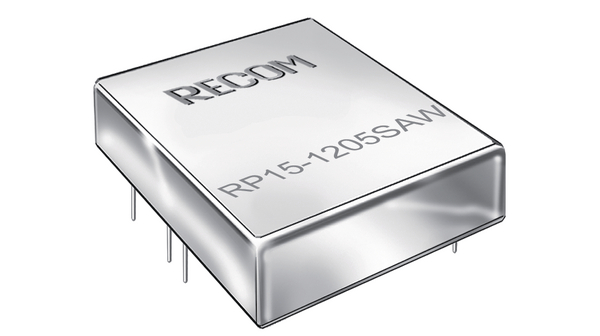

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 8 |
| 最小起订量 | 8 |
| 输出数 | 2 |
| 产品特点 | OCP, OVP, SCP |
| 安装类型 | Through Hole |
| 类型 | Isolated Module |
| 标准包装 | 8 |
| 电压 - 输出1 | 5V |
| 电压 - 输出2 | -5V |
| 尺寸/尺寸 | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) |
| 效率 | 85% |
| 封装 | Tube |
| 电流 - 输出（最大） | 1.5A, 1.5A |
| 电压 - 输入（最大） | 75V |
| 功率（瓦特） - 最大 | 15W |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 输入（最小值） | 18V |
| 电压 - 隔离 | 1.6kV (1600V) |
| 功率（瓦） - 制造商系列 | 15W |
| 封装/外壳 | 6-DIP Module (4 Leads) |
| RoHS指令 | Lead free / RoHS Compliant |
| 输出电压通道1 | 5 V |
| 隔离电压 | 1.6 kV |
| 系列 | RP15 |
| 输入电压范围 | 18 V to 75 V |
| 产品 | Isolated |
| 身高 | 9.9 mm |
| 宽度 | 25.4 mm |
| 长度 | 25.4 mm |
| 封装/外壳尺寸 | 1 in x 1 in |
| 输入电压标称 | 48 V |
| 商品名 | Powerline |
| 输出功率 | 15 W |
| RoHS | RoHS Compliant |
| Brand/Series | RP Series |
| 配置 | Encapsulated |
| 操作 | Switching |
| 输出 | 5VDC@1.5A, -5VDC@1.5A |
| Power, Output | 15 W |
| Primary Type | DC-DC |
| 特殊功能 | 3-Years Warranty, Fully Protected Against Short Circuits, Overcurrent and Overvoltage |
| Voltage, Input | 18-75 VDC |
| Voltage, Output | 5 VDC, -5 VDC |
| Dimensions L x W x H | 25.4 x 25.4 x 10.2 mm |
| Insulation voltage | 1600 VDC |
| Output voltage 1 | 5 VDC |
| 功率 | 15 |
| Output voltage 2 | -5 VDC |
| Output current 1 | 1500 mA |
| Output current 2 | 1500 mA |
| 平均无故障时间 | 1330000 h @ 40 °C, Bellcore TR-NWT-000332, Case I |
| 连接方式 | THD |
| 输入电压 | 36...75 VDC |
| System deviation, load | 0.2% typ. |
| System deviation, supply | 0.2% typ. |
| Short-circuit strength | continuous |
| Residual ripple | 100 mVPP max. |
| Derating | Yes |
| Operating temperature | -40...+85 °C |
