Switchcraft

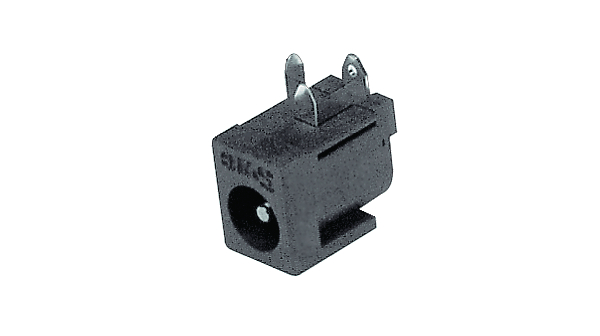

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 产品长度 | 9 |
| 欧盟RoHS指令 | Compliant |
| 产品厚度 | 14.5 |
| 安装 | Through Hole |
| 身体上的取向 | Right Angle |
| 端接方式 | Solder |
| 产品高度 | 11 |
| 外壳材料 | Thermoplastic |
| 端口数 | 1 |
| 触点数 | 2 |
| 触点电镀 | Nickel |
| 性别 | PL |
| 最大额定电流 | 5 |
| 类型 | Power |
| 端子数 | 3 |
| 触点材料 | Brass |
| 屏蔽 | Unshielded |
| 插头/配接插头直径 | 2.5mm ID, 5.5mm OD |
| 位置/触点数 | 2 Conductors, 2 Contacts |
| 颜色 | Black |
| 标准包装 | 2,500 |
| 连接器类型 | Jack |
| 内部开关（S ） | Single Switch, Normally Closed |
| 外壳颜色 | Black |
| 端子 | Solder Eyelet(s) |
| 安装类型 | Through Hole, Right Angle |
| 额定电流 | 5A |
| 触点材料 - 镀层 | Nickel |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 2500 |
| 产品 | Jacks |
| 产品种类 | DC Power Connectors |
| 端接类型 | Solder |
| 安装方式 | Right |
| 触点内径 | 2.5 mm |
| 可燃性等级 | UL 94 V-0 |
| 绝缘电阻 | 30 MOhms |
| 安装风格 | Through Hole |
| 系列 | RAPC |
| RoHS | RoHS Compliant |
| Connector Mounting | :PCB |
| 接触端子 | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| No. of Outlets | :1 |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.001 |
| Tariff No. | 85369010 |
| Angle | RightAngle |
| ContactPlating | Nickel |
| Current,Rating | 5A |
| Diameter,Pin | 0.10" |
| InsulationType | Insulated |
| Material,Body | Thermoplastic |
| Material,Contact | Brass |
| MountingType | PCB |
| NumberofContacts | 2 |
| PrimaryType | Power |
| 尺寸 | Mini |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
