Switchcraft

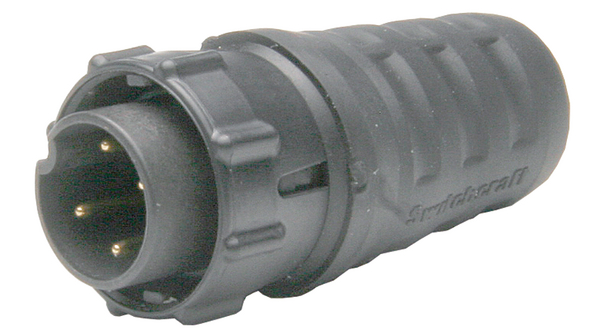

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Standard Circular Connector |
| RoHS | RoHS Compliant |
| 系列 | EN3 |
| 产品类型 | Connectors |
| 位置/触点数 | 3 |
| 联系人性别 | Pin (Male) |
| 端接类型 | Solder Cup |
| 外壳电镀 | Gold over Nickel |
| 外壳类型 | Plug |
| 工厂包装数量 | 100 |
| 寿命 | Obsolete |
| 产品长度 | 39.83 |
| 欧盟RoHS指令 | Not Compliant |
| 产品直径 | 17.86 |
| 触点数 | 3 |
| 安装 | Cable Mount |
| 身体上的取向 | Straight |
| Maximum Current Rating | 7.5 |
| 封装 | Bulk |
| 触点电镀 | Gold Over Nickel |
| 端接方式 | Solder Cup |
| 联系方式分类 | 3Signal |
| 应力消除 | No |
| 类型 | Mini Weathertight |
| 触点材料 | Copper Alloy |
| 子类别 | Connector Circular |
| 交货期 | 365 Days |
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof |
| 安装类型 | Free Hanging (In-Line) |
| 端子 | Solder Cup |
| 连接器类型 | Plug, Male Pins |
| 外壳材料，表面处理 | Thermoplastic Polymer, Glass Fiber |
| 触点表面涂层 | Gold |
| 位置数 | 3 |
| 紧固型 | Bayonet Lock |
| 标准包装 | 100 |
| 额定电流 | 7.5A |
| 其他名称 | SC1157 |
| 产品特点 | Cable Clamp |
| 定位 | Keyed |
| RoHS指令 | Lead free / RoHS non-compliant |
| 锁定系统 | internal bayonet |
| Mechanical mounting | for cable |
| 接触镀层 | gold plated |
| 额定电流 | 3A |
| Multiplicity | 1 |
| Connector type | male |
| 连接器 | plug |
| Gross weight | 6.68 g |
| Connector series | EN3 |
| Cable external diameter | 5.8...9.7mm |
| 额定电压 | 600V AC |
| 针数 | 3 |
| 密封 | IP66, IP68 |
| spg | 5 |
| Collective package [pcs] | 5 |
| Electrical mounting | soldering |
| Poles | 3 |
| Locking type | Bayonet lock |
| Cable entry | 5...7 mm |
| 外壳材料 | Plastic |
| Nominal current | 7.5 |
| Termination type | Soldering Connection |
| Temperature range | -40...+65 °C |
| 接口设计 | straight |
| Contact material | CuNi+Au |
| Protection rating | IP 68 |
| Gender of contacts | Male |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
