Aries Electronics

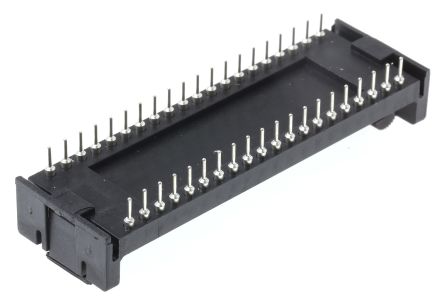

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品特点 | Closed Frame |
| 安装类型 | Through Hole |
| 标准包装 | 1 |
| 触点表面涂层 | Gold |
| 位置或引脚（网格）的数量 | 40 (2 x 20) |
| 间距 | 0.100" (2.54mm) |
| Contact Finish Thickness | 10µin (0.25µm) |
| 类型 | DIP, 0.6" (15.24mm) Row Spacing |
| 触点材料 | Brass Alloy |
| 触点电镀 | Gold over Nickel |
| 额定电流 | 3A |
| 深度 | 17.78mm |
| 外形尺寸 | 58.2 x 11.68 x 17.78mm |
| 外壳材料 | Nylon |
| 长度 | 58.2mm |
| 最高工作温度 | +125°C |
| 最低工作温度 | -55°C |
| 触点数 | 40 |
| 排宽度 | 15.24mm |
| 端接方式 | Solder |
| 宽度 | 11.68mm |
| RoHS指令 | Compliant |
| 工厂包装数量 | 1 |
| 产品 | DIP / SIP Sockets |
| 产品种类 | IC & Component Sockets |
| 工作温度范围 | - 55 C to + 125 C |
| 系列 | EJECT-A-CHIP |
| 额定电压 | 1 kV |
| 端接类型 | Solder Tail |
| 安装风格 | Through Hole |
| 位置/触点数 | 40 |
| 可燃性等级 | UL 94 V-0 |
| 行数 | 2 |
| 机箱样式 | DIP |
| 行间距 | 15.24 mm |
| RoHS | RoHS Compliant |
| 连接器类型 | :DIP |
| No. of Contacts | :40 |
| 节距 | :2.54mm |
| Row Pitch | :15.24mm |
| 接触端子 | :Through Hole Vertical |
| Connector Mounting Orientation | :PC Board |
| 引线间距 | :2.54mm |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-55°C |
| Pin Format | :DIP |
| Weight (kg) | 0.005 |
| Tariff No. | 85369010 |
