Aries Electronics

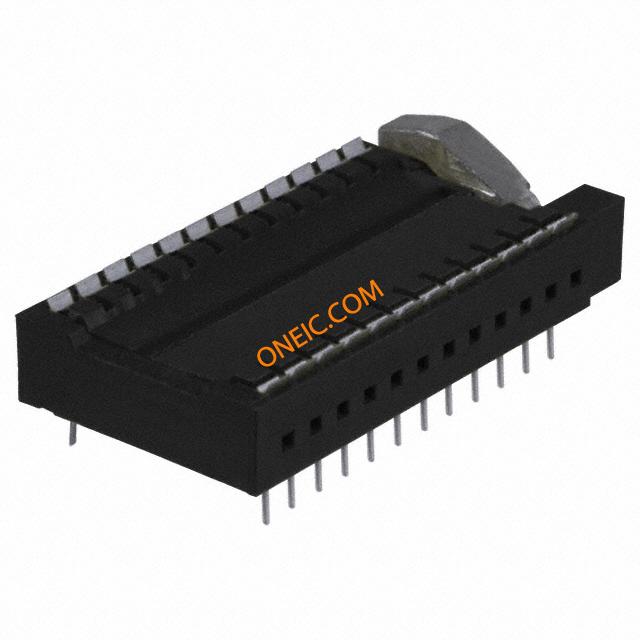

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品特点 | Closed Frame |
| 安装类型 | Through Hole |
| 标准包装 | 17 |
| 触点表面涂层 | Tin |
| 位置或引脚（网格）的数量 | 24 (2 x 12) |
| 间距 | 0.100" (2.54mm) |
| Contact Finish Thickness | 10µin (0.25µm) |
| 类型 | DIP, ZIF (ZIP) |
| 工厂包装数量 | 17 |
| 产品种类 | IC & Component Sockets |
| 系列 | 526 |
| 端接类型 | Solder Tail |
| 安装风格 | Through Hole |
| 位置/触点数 | 24 |
| 行数 | 2 |
| 触点电镀 | Tin |
| RoHS | RoHS Compliant |
| 连接器类型 | :DIP |
| No. of Contacts | :24 |
| 节距 | :2.54mm |
| Row Pitch | :15.24mm |
| 接触端子 | :Through Hole Vertical |
| 触点材料 | :Beryllium Copper |
| Connector Mounting Orientation | :PC Board |
| 引线间距 | :2.54mm |
| Pin Format | :DIP |
| Weight (kg) | 0.002 |
| Tariff No. | 85366930 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
