cooper bussmann

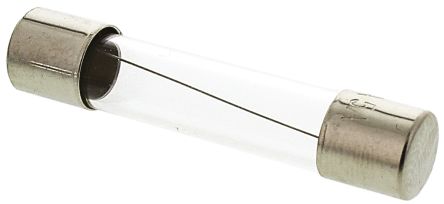

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Miniature |
| 额定电流 | 5 A |
| 代理 | Fast |
| 标准包装 | Bulk |
| RoHS | No |
| 产品类型 | Glass Fuse |
| 体风格 | Cartridge Fuses |
| 电压额定值AC | 250 V |
| 安装风格 | Holder |
| 端接类型 | Clip |
| 保险丝类型 | Fast Blow |
| 保险丝大小/组5毫米×20毫米 | 3AG (6.3 mm x 32 mm) |
| 外形尺寸 | 31.8 mm L x 6.35 mm D |
| 系列 | TDC10 |
| 表壳直径 | 6.35 mm |
| 表壳长度 | 31.8 mm |
| 指示器型式 | Without Indicator |
| 产品 | Specialty Fuses |
| 阀体材质 | Glass |
| 分断能力在最大额定电压 | 50 A |
| 直径 | 6.35mm |
| 熔断速度 | F |
| 身高 | 31.8mm |
| 额定电压 | 250 V ac |
| RoHS指令 | Non Compliant |
| 单位重量 | 0.070548 oz |
| Voltage Rating V AC | :250V |
| Fuse Current | :5A |
| 断能力 | :50A @ 250V AC |
| Fuse Size Metric | :6.3mm x 32mm |
| Fuse Size Imperial | :1/4" x 1-1/4" |
| Blow Characteristic | :Fast Acting |
| SVHC | :No SVHC (20-Jun-2013) |
| Breaking Capacity Current AC | :50A |
| Cartridge Fuse Material | :Glass |
| 外壳材料 | :Glass |
| Fuse Breaking Capacity Voltage AC | :250V |
| Fuse Size Code | :3AG |
| Fuse Size Held | :1/4" x 1-1/4", 6.3mm x 32mm, 3AB, 3AG, 0 |
| Fuse Type Blowing Characteristic | :Fast Acting |
| Weight (kg) | 0.00159 |
| Tariff No. | 85361010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
