weidmuller

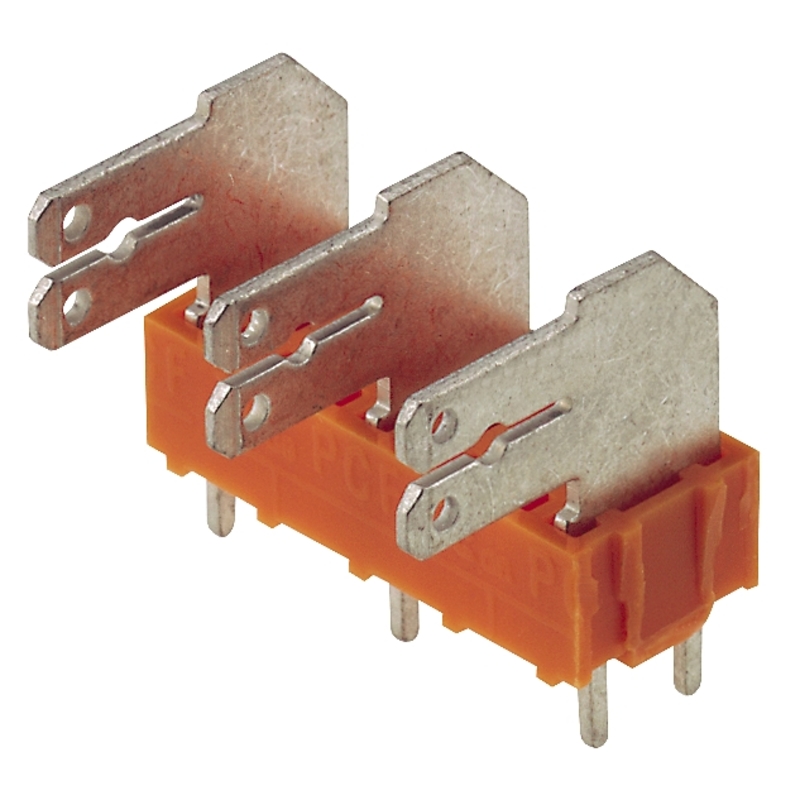

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Wire to Board |
| 间距 | 10 mm |
| 行数 | 1 |
| 触点数 | 3 |
| 性别 | M |
| 触点电镀 | Tin |
| 端接方式 | Solder |
| 标准包装 | Bag |
| 封装 | Bulk |
| 楼层数 | 1 |
| 安装类型 | Through Hole |
| 啮合定位 | Horizontal with Board |
| 每一级的位置 | 3 |
| 外壳材料 | Polyamide (PA), Nylon |
| 电流 | 15A |
| 颜色 | Orange |
| 工作温度 | -50°C ~ 100°C |
| 电压 | 300V |
| 导线端子 | Quick Connect, Disconnect |
| 触点材料 - 镀层 | Copper Alloy - Tin Plated |
| RoHS指令 | Lead free / RoHS Compliant |
| Temperature range, installation, max | 100 °C |
| Product family | PCF |
| Solder eyelet hole diameter (D) | 1.3 mm |
| Touch-safe protection acc* to DIN VDE 0470 | IP 00 |
| ETIM 3*0 | EC001284 |
| Number of solder pins per pole | 2 |
| Engineering data | EPLAN |
| Net weight | 4.16 g |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Rated current, min* no* of poles (Ta = 40°C) | 24 A |
| Short-time withstand current resistance | 3 x 1s mit 192 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| 行数 | 1 |
| L1 in inches | 0.787 inch |
| GTIN (EAN) | 4008190557867 |
| Rated voltage (Use group B) | 300 V |
| Max* relative humidity during storage | 80 % |
| CTI | ≥ 600 |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 6 kV |
| Contact material | CuSn |
| Rated current, min* no* of poles (Ta = 20°C) | 24 A |
| Rated current (use group C) | 15 A |
| Insulating material group | I |
| Layer structure of solder connection | 1.5-3 µm Ni / 5-7 µm Sn |
| Temperature range, installation, min | -25 °C |
| UNSPSC | 30-21-18-01 |
| Pitch in mm (P) | 10 mm |
| Pitch in inches (P) | 0.394 inch |
| Insulating material | PA |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 6 kV |
| Rated voltage (use group B) | 300 V |
| Contact surface | tinned |
| ETIM 4*0 | EC002643 |
| Volume resistance | 1.20 mΩ |
| Rated voltage (use group D) | 300 V |
| ETIM 5*0 | EC002643 |
| Conductor outlet direction | 90° |
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
| 版本 | PCB terminal, 10.00 mm, No. of poles: 3, 90°, Solder pin length (l): 3.5 mm, tinned, Orange, Flat-blade connection, Box |
| eClass 9*0 | 27-44-04-01 |
| L1 in mm | 20 mm |
| 颜色 | Orange |
| eClass 6*2 | 27-26-11-01 |
| Rated current, max* no* of poles (Ta = 20°C) | 26 A |
| Solder pin length (l) | 3.5 mm |
| Operating temperature, max | 100 °C |
| Rated current (use group D) | 10 A |
| Mounting onto the PCB | THT solder connection |
| Storage temperature, min | -25 °C |
| eClass 8*1 | 27-44-04-01 |
| tested acc* to standard | IEC 60664-1, IEC 61984 |
| Rated voltage (Use group C) | 300 V |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 6 kV |
| Product data | IEC: 1000 V / 24 AUL: 300 V / 15 A |
| Solder pin dimensions | 0.8 x 1.0 mm |
| Rated current (use group B) | 15 A |
| eClass 7*1 | 27-44-04-01 |
| ETIM 6*0 | EC002643 |
| Fitted by customer | No |
| Rated current, max* no* of poles (Ta = 40°C) | 22 A |
| Wire connection method | Flat-blade connection |
| Operating temperature, min | -50 °C |
| Insulation resistance | ≥ 108 Ω |
| Rated voltage for surge voltage class / pollution degree III/2 | 690 V |
| UL 94 flammability rating | V-2 |
| Storage temperature, max | 55 °C |
| Certificate No* (CSA) | 12400-282 |
| Colour chart (similar) | RAL 2000 |
| Rated voltage for surge voltage class / pollution degree III/3 | 690 V |
| No* of poles | 3 |
| ROHS | Conform |
| Rated voltage (use group C) | 300 V |
