Weidmuller

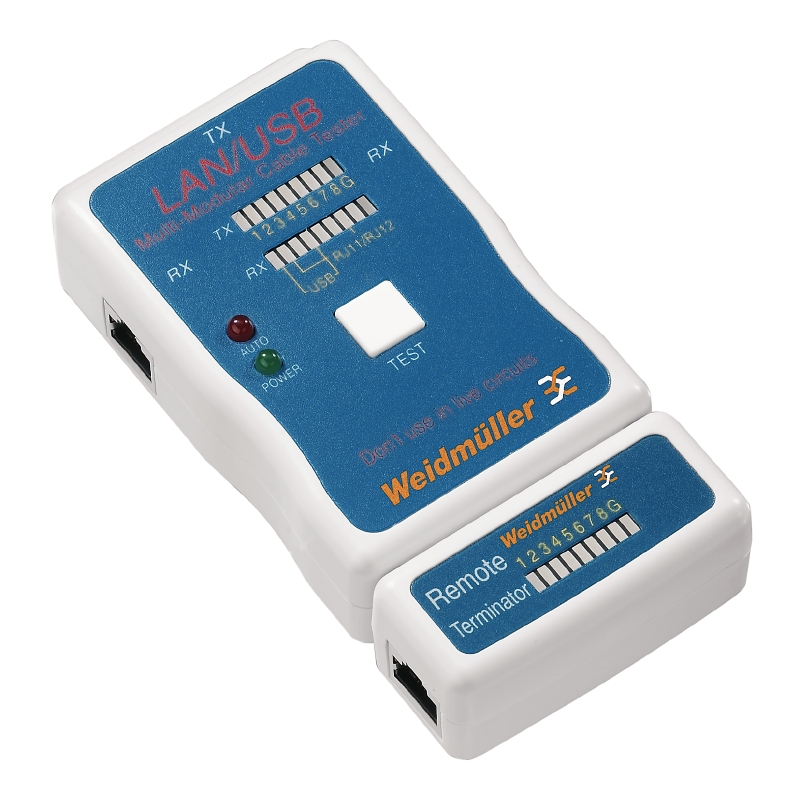

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工具类型 | Continuity Tester |
| 配用/相关产品 | Multiple Cables |
| 标准包装 | 1 |
| ETIM 3*0 | EC000495 |
| Net weight | 355 g |
| 宽度 | 65 mm |
| 版本 | Continuity tester for data cables |
| GTIN (EAN) | 4032248732128 |
| 类型 | LAN USB TESTER |
| Length (inches) | 5.315 inch |
| Descriptive text ordering data | Battery, accessories and bag included in delivery |
| UNSPSC | 41-11-36-37 |
| Height (inches) | 1.063 inch |
| eClass 5*1 | 27-20-11-06 |
| Remote box weight | 30 g |
| ETIM 4*0 | EC000069 |
| Tested and approved according to | EN/ IEC 61010 |
| ETIM 5*0 | EC000069 |
| eClass 9*0 | 27-20-03-08 |
| eClass 7*1 | 27-20-03-01 |
| Remote box dimensions | 65 x 28 x 27 mm |
| 长度 | 135 mm |
| Width (inches) | 2.559 inch |
| 显示 | LED |
| Protection degree | IP44 |
| Type of connection | RJ45, USB A, USB B |
| 重量 | 174 g |
| Supply | 9V battery |
| ETIM 6*0 | EC000069 |
| 身高 | 27 mm |
| eClass 8*1 | 27-20-03-01 |
| eClass 6*2 | 27-20-03-01 |
| Testable cable length, max | 1,000 m |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
