Weidmuller

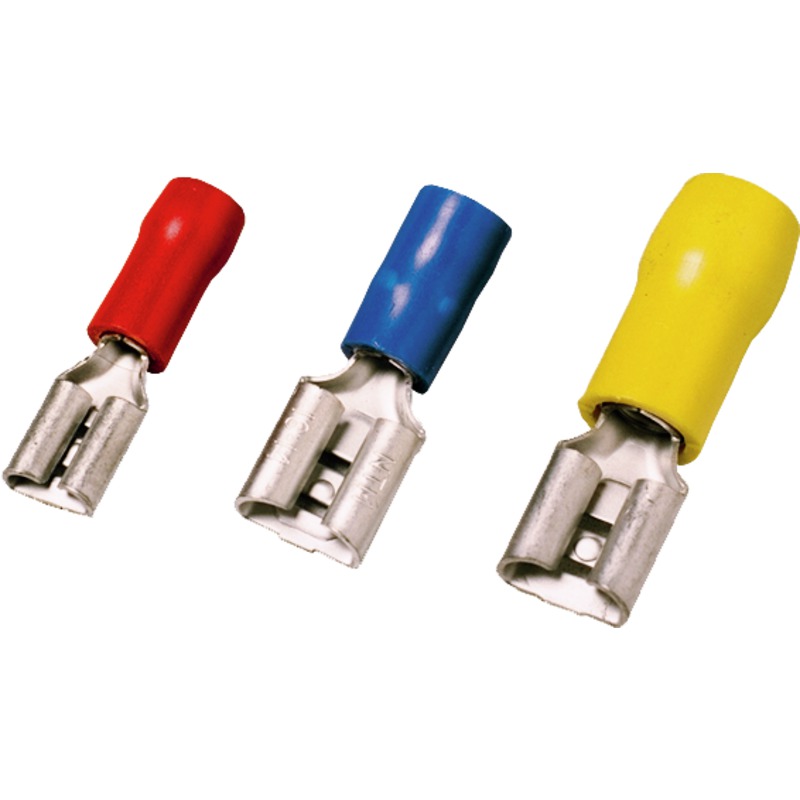

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 片厚度 | 0.032" (0.81mm) |
| 片宽度 | 0.187" (4.75mm) |
| 安装类型 | Free Hanging (In-Line) |
| 长度 - 总体 | 0.756" (19.20mm) |
| 封装 | Bulk |
| 性别 | Female |
| 颜色 | Red |
| 标准包装 | 1 |
| 绝缘 | Non-Mating End Insulated |
| 端子 | Crimp |
| 终端类型 | Standard |
| Conductor cross-section, min | 0.5 mm² |
| ETIM 3*0 | EC001052 |
| Plug-in width (d2) | 4.8 mm |
| 宽度 | 5.7 mm |
| 版本 | cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,Red |
| GTIN (EAN) | 4032248410378 |
| 类型 | LIF 1,5F488 R |
| Length (inches) | 0.756 inch |
| Plastic collar length (b) | 10 mm |
| UNSPSC | 30-21-18-01 |
| eClass 5*1 | 27-40-02-04 |
| eClass 8*1 | 27-40-02-12 |
| ETIM 4*0 | EC001052 |
| Conductor cross-section, max | 1.5 mm² |
| ETIM 5*0 | EC001059 |
| eClass 9*0 | 27-40-02-12 |
| eClass 7*1 | 27-40-02-04 |
| Net weight | 0.71 g |
| 长度 | 19.2 mm |
| Width (inches) | 0.224 inch |
| Plug-in density (d3) | 0.8 mm |
| Plastic collar diameter (D) | 4 mm |
| 尺寸 | 4.8 x 0.8 mm |
| Dimension (flat blade connector) | 4.8 x 0.8 mm |
| ETIM 6*0 | EC001059 |
| eClass 6*2 | 27-40-02-04 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
