Weidmuller

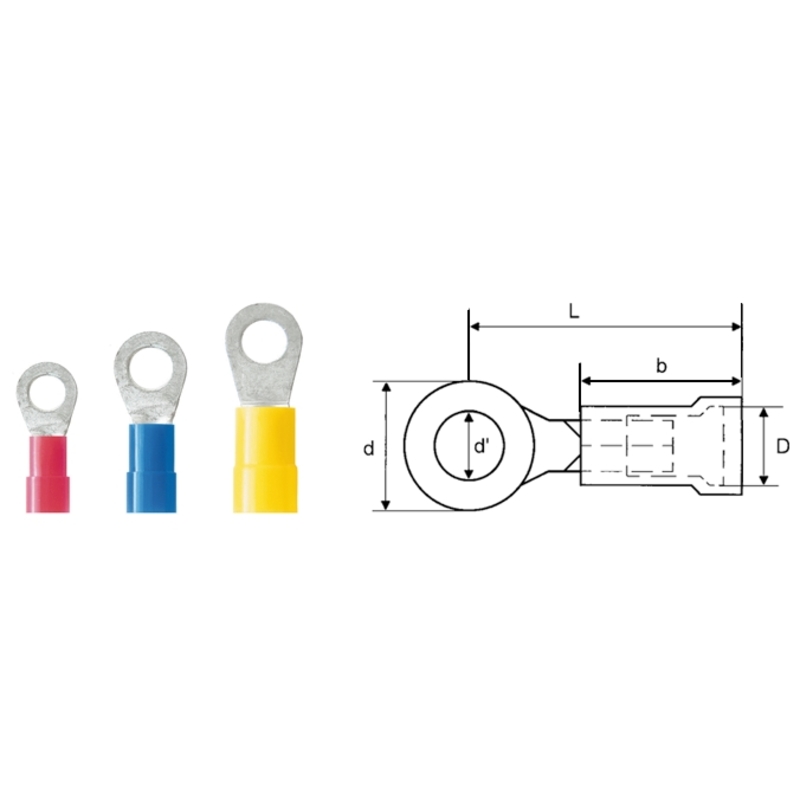

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 梭哈/标签大小 | M10 Stud |
| 安装类型 | Free Hanging (In-Line) |
| 宽度 - 外边 | 0.591" (15.00mm) |
| 封装 | Bulk |
| 材料 - 绝缘体 | Poly-Vinyl Chloride (PVC) |
| 颜色 | Yellow |
| 标准包装 | 1 |
| 绝缘 | Insulated |
| 端子 | Crimp |
| 终端类型 | Standard |
| Conductor cross-section, min | 4 mm² |
| ETIM 3*0 | EC000385 |
| Net weight | 2.1 g |
| 宽度 | 8.1 mm |
| 版本 | cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,Yellow |
| GTIN (EAN) | 4032248410095 |
| 类型 | LIR 6M10 V |
| Length (inches) | 1.382 inch |
| Plastic collar length (b) | 14.15 mm |
| eClass 9*0 | 27-40-02-12 |
| Dimension (bolt) | M 10 |
| UNSPSC | 23-17-16-04 |
| Inside diameter (d1) | 10.5 mm |
| eClass 5*1 | 21-04-03-01 |
| eClass 8*1 | 27-40-02-12 |
| ETIM 4*0 | EC000385 |
| Conductor cross-section, max | 6 mm² |
| ETIM 5*0 | EC001059 |
| Connection density (S1) | 1 mm |
| eClass 7*1 | 27-40-02-04 |
| 长度 | 35.1 mm |
| Plastic collar diameter (D) | 6.4 mm |
| 尺寸 | M 10 |
| Width (inches) | 0.319 inch |
| Outside diameter (d) | 15 mm |
| ETIM 6*0 | EC001059 |
| eClass 6*2 | 27-40-02-04 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
