Weidmuller

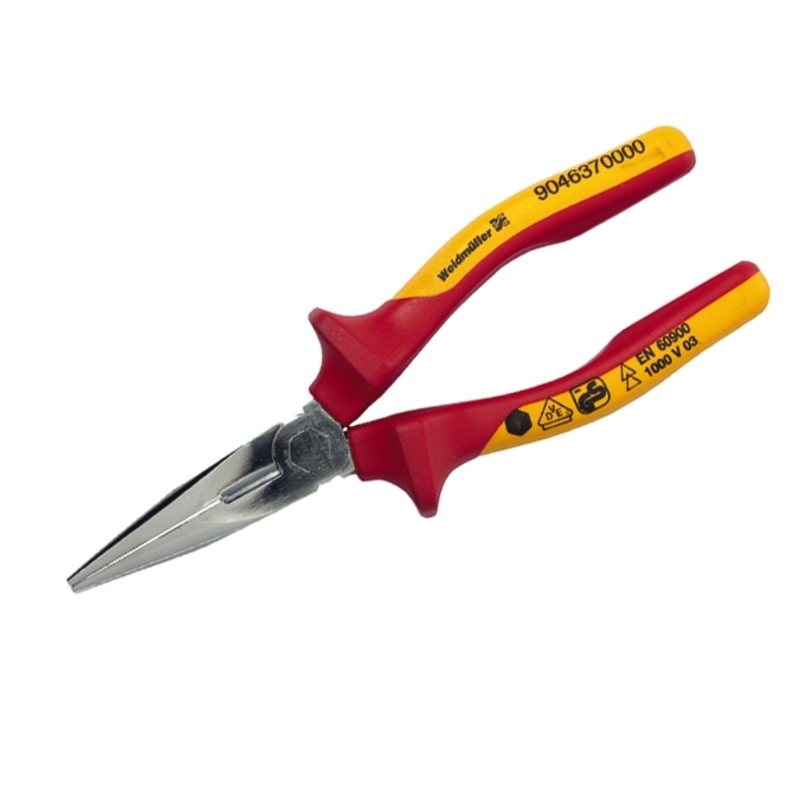

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工具类型 | Standard |
| 产品特点 | Ergonomic, Includes Cutter, Insulated to 1000V, Non-Slip, Soft Grips |
| 重量 | 0.38 lb (172.37g) |
| 尖端 - 形状 | Straight |
| 下巴 - 类型 | Serrated |
| 长度 | 6.30" (160.0mm) |
| 尖端 - 类型 | Long Nose |
| 标准包装 | 1 |
| Pliers length | 160mm |
| Tool type | pliers |
| Pliers/knives application | for voltage works |
| Multiplicity | 1 |
| Pliers type | insulated, for gripping and bending, flat |
| Gross weight | 0.15 kg |
| Blade hardness | about 60 HRc |
| Conform to the norm | EN 60900:2004 |
| spg | 1 |
| Collective package [pcs] | 1 |
| Max operating voltage | 1kV AC |
| Length (inches) | 6.299 inch |
| eClass 9*0 | 21-04-38-00 |
| eClass 7*1 | 21-04-38-90 |
| ETIM 3*0 | EC000835 |
| eClass 5*1 | 21-04-03-01 |
| GTIN (EAN) | 4032248357673 |
| UNSPSC | 23-17-16-04 |
| Net weight | 149.5 g |
| 版本 | One-hand mechanical |
| eClass 6*2 | 21-04-38-90 |
| ETIM 6*0 | EC000835 |
| eClass 8*1 | 21-04-38-90 |
| ETIM 4*0 | EC000835 |
| 类型 | FRZ S 160 |
| Descriptive text technical data | (MH) medium-hard wire; (H) hard wire; (P) piano wire |
| ETIM 5*0 | EC000835 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
