weidmuller

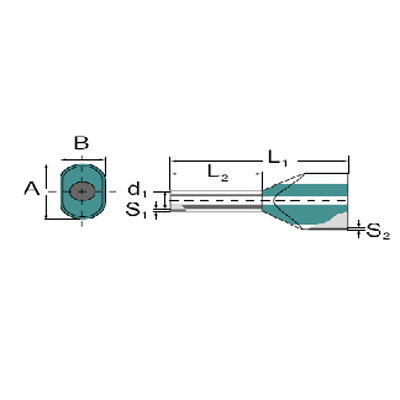

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Wire End Ferrule |
| 家庭 | 9037540000 |
| 标准包装 | Bag |
| 风格 | DIN |
| 颜色 | Gray |
| 长度 - 引脚 | 18.00mm |
| 长度 - 总体 | 28.00mm |
| 绝缘 | Insulated |
| 尺寸 | Two x 12 AWG (4.00mm²) |
| RoHS指令 | Not applicable / Not applicable |
| Electrical mounting | crimped |
| Mechanical mounting | for cable |
| Contact material | copper |
| Multiplicity | 1 |
| 颜色 | grey |
| Gross weight | 0.59 g |
| Ferrule variant | insulated, double |
| Wire cross section | 4mm2 |
| 接触镀层 | tinned |
| Insulator material | polypropylene |
| Bit length | 18mm |
| spg | 100 |
| Collective package [pcs] | 100 |
| Tip type | bootlace ferrule |
| Max ambient temperature | 105°C |
| Collar height (A) | 9 mm |
| ETIM 3*0 | EC000005 |
| Net weight | 0.4 g |
| Contact surface length (L2) | 18 mm |
| 版本 | Twin wire-end ferrule |
| Wire connection cross section AWG, max | AWG 12 |
| GTIN (EAN) | 4008190493110 |
| Length (inches) | 1.102 inch |
| UNSPSC | 31-16-31-02 |
| eClass 5*1 | 27-40-02-01 |
| Contact surface diameter (D1) | 3.5 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| eClass 8*1 | 27-40-02-01 |
| ETIM 4*0 | EC000005 |
| ETIM 5*0 | EC000005 |
| eClass 9*0 | 27-40-02-01 |
| eClass 9*1 | 27-40-02-01 |
| L1 in mm | 28 mm |
| eClass 7*1 | 27-40-02-01 |
| Conductor cross-section | 4 mm² |
| 长度 | 28 mm |
| Plastic collar thickness (S2) | 0.5 mm |
| Colour code | DIN |
| ETIM 6*0 | EC000005 |
| Stripping length | 21 mm |
| eClass 6*2 | 27-40-02-01 |
| Collar width (B) | 5.2 mm |
| ROHS | Conform |
