weidmuller

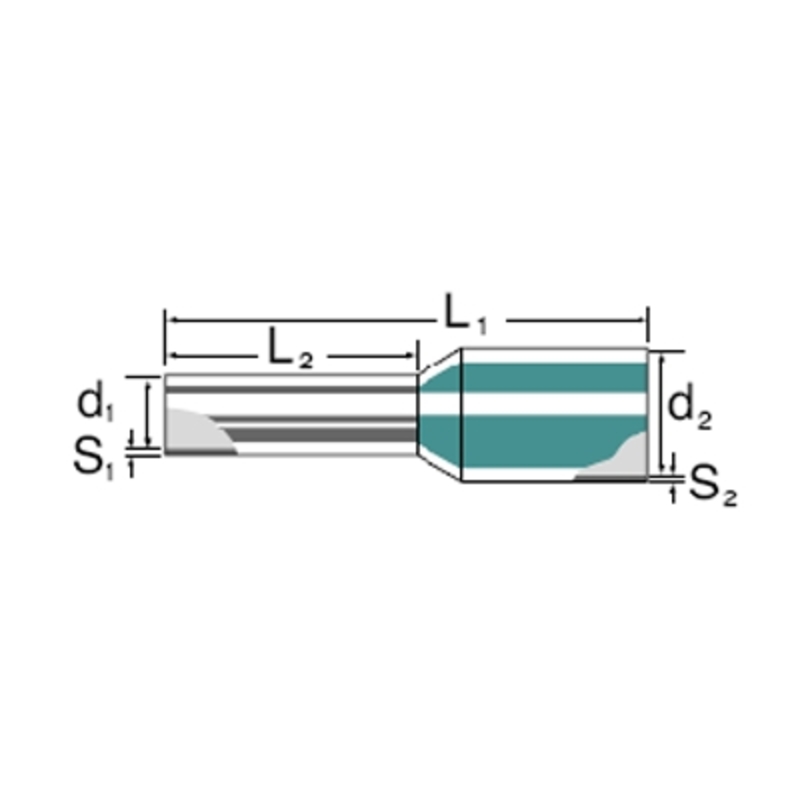

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Wire End Ferrule |
| 家庭 | 9005810000 |
| 标准包装 | Cable Rolls / Shrink Tubing |
| 颜色 | Orange |
| 长度 - 引脚 | 8.00mm |
| 长度 - 总体 | 14.00mm |
| 绝缘 | Insulated |
| 其他名称 | H 0.5/14 ORANGE BD |
| 尺寸 | 20 AWG (0.50mm²) |
| RoHS指令 | Lead free / RoHS Compliant |
| ETIM 3*0 | EC000005 |
| Net weight | 0.095 g |
| Contact surface length (L2) | 8 mm |
| 版本 | insulated |
| Wire connection cross section AWG, max | AWG 20 |
| GTIN (EAN) | 4008190275877 |
| Length (inches) | 0.551 inch |
| eClass 7*1 | 27-40-02-01 |
| UNSPSC | 31-16-31-02 |
| eClass 5*1 | 27-40-02-01 |
| Contact surface diameter (D1) | 1 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| eClass 8*1 | 27-40-02-01 |
| ETIM 4*0 | EC000005 |
| ETIM 5*0 | EC000005 |
| eClass 9*0 | 27-40-02-01 |
| eClass 9*1 | 27-40-02-01 |
| L1 in mm | 14 mm |
| Collar diameter (D2) | 2.6 mm |
| Conductor cross-section | 0.5 mm² |
| 长度 | 14 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Colour code | Weidmüller |
| ETIM 6*0 | EC000005 |
| Stripping length | 10 mm |
| eClass 6*2 | 27-40-02-01 |
| ROHS | Conform |
