Weidmuller

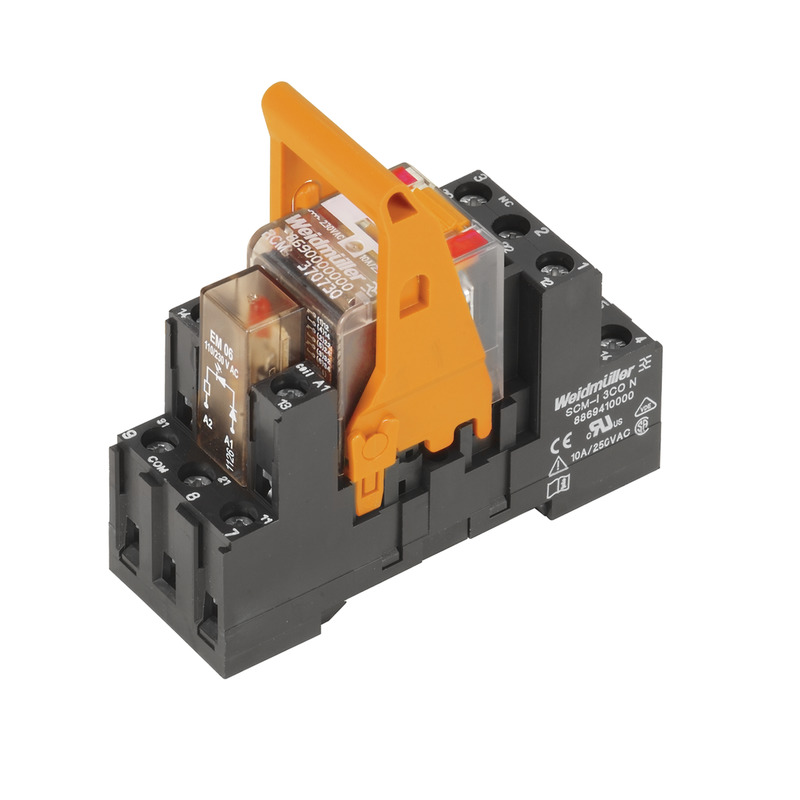

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 线圈电流 | 8.8mA |
| 线圈电压 | 115VAC |
| 开启电压（最大值） | 92 VAC |
| 产品特点 | LED Indicator |
| 线圈类型 | Non Latching |
| 关闭电压（最小值） | 34.5 VAC |
| 线圈功率 | 1 VA |
| 触点形式 | 3PDT (3 Form C) |
| 继电器类型 | General Purpose with Socket |
| 端接类型 | Screw Terminal |
| 切换电压 | 250VAC - Max |
| 释放时间 | 10ms |
| 封装 | Bulk |
| 工作温度 | -40°C ~ 70°C |
| 操作时间 | 15ms |
| 触点额定值（电流） | 10A |
| 标准包装 | 1 |
| 安装类型 | DIN Rail |
| 触点材料 | Silver Nickel (AgNi) |
| Max* switching voltage, AC | 400 V |
| Continuous current | 10 A |
| Wire connection cross section, finely stranded, two clampable wires, min | 0.75 mm² |
| Dielectric strength of open contact | 1.2 kVeff / 1 min. |
| Rated current AC | 8.8 mA |
| ETIM 3*0 | EC001437 |
| Pollution severity | 2 |
| Impulse withstand voltage | 5 kV (1.2/50 µs) |
| Engineering data | EPLAN |
| Dielectric strength of neighbouring contacts | 2.5 KVeff / 1 min. |
| Certificate No* (GERMLLOYD) | 54702-08 |
| Inrush current | 20 A / 20 ms |
| Height (inches) | 2.894 inch |
| Status indicator | red LED, Mechanical |
| Wire cross-section, solid, max | 2.5 mm² |
| 版本 | RIDERSERIES RCM, Relays, No. of contacts: 3 CO contact with test button AgNi 90/10, Rated control voltage: 115 V AC, Continuous current: 10 A, Screw connection |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min | 0.75 mm² |
| Width (inches) | 1.071 inch |
| GTIN (EAN) | 4032248692255 |
| Wire connection cross section, finely stranded, max | 2.5 mm² |
| 额定功率 | 1.0 VA |
| 类型 | RCMKIT-I 115VAC 3CO LD |
| eClass 7*1 | 27-37-16-01 |
| Contact material | AgNi 90/10 |
| eClass 9*1 | 27-37-16-01 |
| Mechanical service life | AC coil 20 x 106 Switch. cycles, DC coil 30 x 106 Switch. cycles |
| Pull-in/drop-out voltage, typ | 92 V / 34.5 V AC |
| eClass 9*0 | 27-37-16-01 |
| Rated control voltage | 115 V AC |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max | 2.5 mm² |
| Certificate no* (CSA) base | 249409-2295474 |
| eClass 5*1 | 27-37-16-01 |
| Wire cross-section, solid, min | 0.75 mm² |
| UNSPSC | 30-21-19-17 |
| Certificate no* (cURus) relay | E224238 |
| Operating temperature | -40 °C...70 °C |
| Switch-off delay | ≤ 10 ms |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max | 2.5 mm² |
| Creepage and clearance distance input – output | ≥ 4 mm |
| ETIM 4*0 | EC001437 |
| ETIM 5*0 | EC001437 |
| 线圈电阻 | 4845 Ω ± 12 % |
| Contact design | CO contact with test button |
| Rated switching voltage | 250 V AC |
| Depth (inches) | 2.819 inch |
| Clamping range, rated connection, min | 0.75 mm² |
| 标准 | DIN EN 50178 |
| eClass 6*2 | 27-37-16-01 |
| 湿度 | 40 °C / 93 % rel. humidity, no condensation |
| Switch-on delay | ≤ 15 ms |
| 深度 | 71.6 mm |
| AC switching capacity (resistive), max | 2500 VA |
| Storage temperature | -40 °C...70 °C |
| Min* switching power | 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V |
| Wire connection cross-section, finely stranded, min | 0.75 mm² |
| Dielectric strength input – output | 2.5 KVeff / 1 min. |
| Declaration of Conformity | DE_PA5600_160414_002.pdf |
| Max* switching frequency at rated load | 0.1 Hz |
| eClass 8*1 | 27-37-16-01 |
| Protection degree | IP20 |
| No* of contacts | 3 |
| 额定电压 | 250 V |
| Tightening torque, min | 0.5 Nm |
| 宽度 | 27.2 mm |
| Wire connection method | Screw connection |
| Wire cross-section, finely stranded, two clampable wires, max | 1.5 mm² |
| UL 94 flammability rating | V-0 |
| ETIM 6*0 | EC001437 |
| Clamping range, rated connection | 2.5 mm² |
| Insulating material group | IIIa |
| Net weight | 98 g |
| Tightening torque, max | 0.7 Nm |
| Stripping length, rated connection | 8 mm |
| 身高 | 73.5 mm |
| DC switching capacity (resistive), max | 240 W @ 24 V |
| Test button | Yes |
| Certificate no* (CSA) relay | 249409-2426937 |
| ROHS | Conform |
| Surge voltage category | III |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min | 0.75 mm² |
| Clamping range, rated connection, max | 2.5 mm² |
| Blade size | size PZ1 |
| Certificate no* (cURus) base | E223759 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
