weidmuller

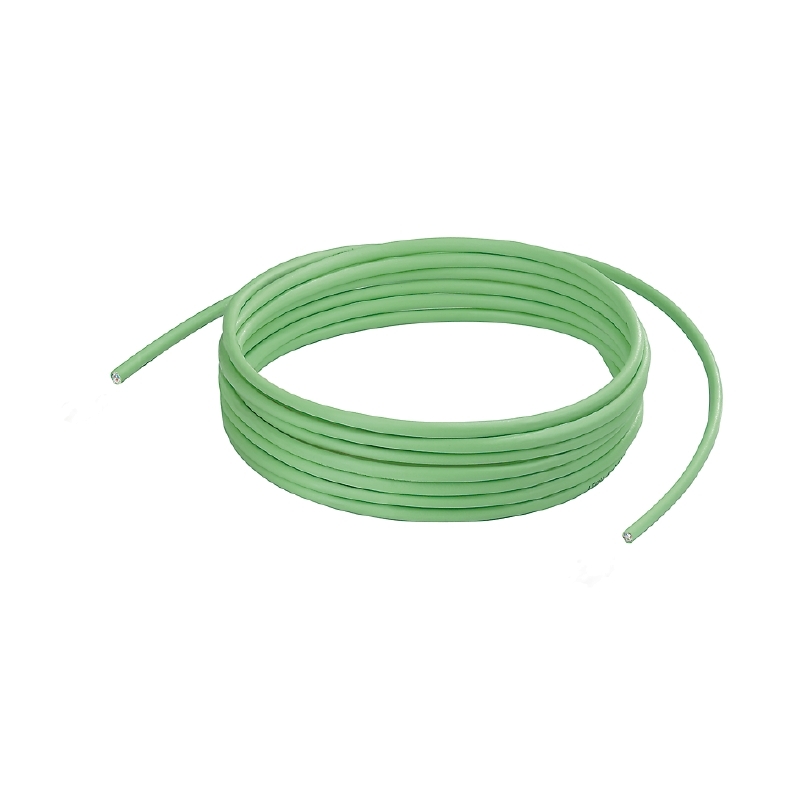

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Unshielded Twisted Pair Cable |
| 导线数 | 8 |
| 导体材料 | Tin Plated Copper |
| 标准包装 | Bulk |
| 护套材料 | Poly-Vinyl Chloride (PVC) |
| 套管直径 | 0.248" (6.30mm) |
| 工作温度 | -40°C ~ 80°C |
| 导体绞合线 | Solid |
| 线规 | 24 AWG |
| 屏蔽类型 | Foil, Braid |
| 长度 | 328.1' (100m) |
| 绝缘 | Polyethylene (PE) |
| 屏蔽覆盖范围 | 100%, 65% |
| 电缆类型 | Multi-Pair, Cat5 |
| 颜色 | Green |
| 电压 | 1000V |
| 屏蔽材料 | Aluminum; Copper, Tinned |
| 其他名称 | IE-51C4X2XAWG24/1-PVC CBL 100M |
| RoHS指令 | Lead free / RoHS Compliant |
| Abrasion resistance | good |
| ETIM 3*0 | EC001262 |
| No* of wires | 8 |
| Net weight | 4,720 g |
| Test voltage: wire-wire-shield, at RMS 50Hz, 1 min | 700 V / AC |
| 版本 | Installation cable, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PVC, 100 m |
| GTIN (EAN) | 4032248512904 |
| 偏差 | 40 ns/100m |
| Length (inches) | 3.937 inch |
| 屏蔽 | SF/UTP |
| eClass 9*0 | 27-06-03-08 |
| eClass 5*1 | 27-06-18-02 |
| Capacity at 1 kHz | 47 nF/km |
| UNSPSC | 26-12-16-06 |
| Material sheath | PVC |
| Wire core insulation thickness | 0.25 mm |
| Operating temperature | -40 °C...80 °C |
| Min* bending radius, repetitive | 10 *diameter |
| Insulation cross-section | 1 mm |
| Operating voltage | 125 V |
| eClass 8*1 | 27-06-03-08 |
| ETIM 4*0 | EC000830 |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| ETIM 5*0 | EC000830 |
| Wire material | Non-insulated copper wire |
| Standard designations | IE-5CC4x2xAWG26/7-PVC LI02YS(ST)CY, SF/UTP |
| Resistance differential | 3 % |
| Sheathing material thickness | 0.55 mm |
| eClass 9*1 | 27-06-90-90 |
| eClass 7*1 | 27-06-18-01 |
| Overlap of shielding braid | 65 % |
| Diameter of wire pair | 2 mm |
| Storage temperature | -40 °C...80 °C |
| Complete shielding | Aluminium foil, Shielding braid made from copper wiring |
| Strands | 1 |
| Sheathing colour | green (RAL 6018) |
| Fire propagation | No |
| Transfer impedance | 10 mΩ/m at 10 MHz |
| Shielding braid thickness | 0.1 mm |
| Arrangement of wire cores | Twisted pair |
| Min* bending radius, once only | 5 *diameter |
| ETIM 6*0 | EC000830 |
| Colour sequence or wires - wire pairs | white/blue - blue, white/orange - orange, white/green - green, white/brown - brown |
| Sheath diameter, max | 6.3 mm |
| Cross-section | 4*2*AWG 24/1 - 4*2*0.205 mm² |
| Insulation resistance | 500.000 Ω |
| ROHS | Conform |
| Loop resistance | 290 Ω/km |
| eClass 6*2 | 27-06-18-01 |
| 绝缘 | PE |
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Sheath diameter, min | 5.7 mm |
| Signal propagation time | 4.85 ns/m |
| Installation temperature | -15 °C...60 °C |
