weidmuller

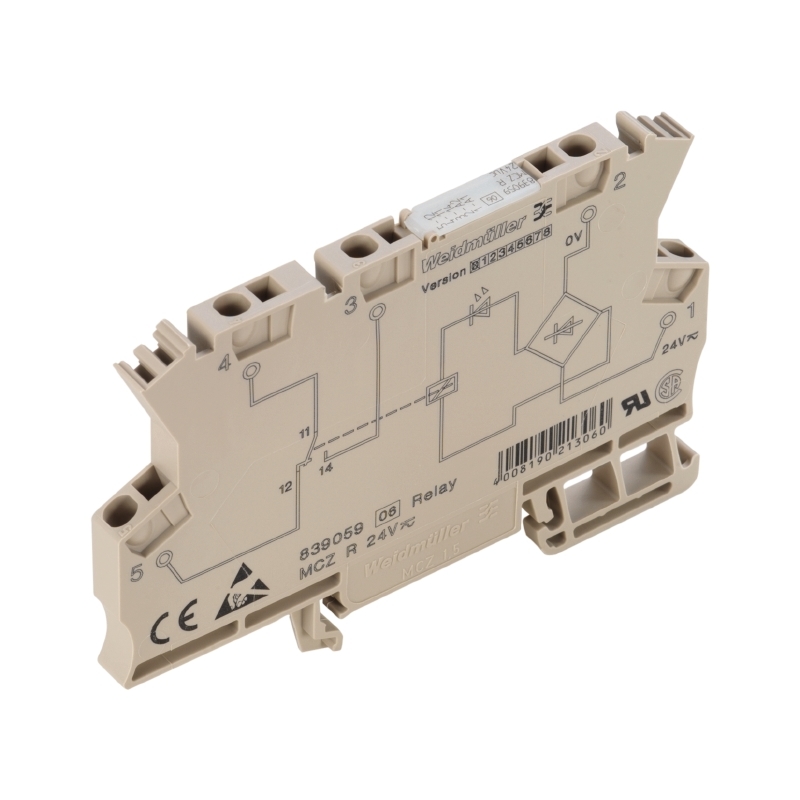

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Discrete Relay |
| 触点形式 | SPST-NO |
| 最大额定电流 | 6 A |
| 直流线圈电压 | 48 to 110 V |
| 安装 | DIN Rail |
| 线圈电流 | <3 mA |
| 触点材料 | Silver Tin Oxide |
| 最大直流额定电压 | 250 V |
| 工作温度 | -25 to 70 °C |
| 标准包装 | Bulk |
| 继电器类型 | General Purpose with Socket |
| 端接类型 | Screw Terminal |
| 线圈类型 | Non Latching |
| 切换电压 | 250VAC - Max |
| 线圈功率 | 300 mW |
| 线圈电压 | 110VDC |
| 触点形式 | SPST-NO (1 Form A) |
| 触点额定值（电流） | 6A |
| 产品特点 | LED Indicator |
| 安装类型 | DIN Rail |
| 封装 | Bulk |
| 其他名称 | MCZ R 48-110VDC 1 NO |
| RoHS指令 | Lead free / RoHS Compliant |
| Max* switching voltage, AC | 250 V |
| Continuous current | 6 A |
| Mechanical service life | 10 x 106 switching cycles |
| ETIM 3*0 | EC001437 |
| Pollution severity | 2 |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Engineering data | EPLAN |
| Net weight | 27.2 g |
| Inrush current | 6 A |
| Max* switching frequency at rated load | 0.1 Hz |
| eClass 7*1 | 27-37-16-01 |
| Status indicator | Green LED |
| Wire cross-section, solid, max | 1.5 mm² |
| 版本 | MCZ-SERIES TRAK, Relays, No. of contacts: 1 NO contact AgSnO, Rated control voltage: 48 V…110 V DC +25 % / -30 %, Continuous current: 6 A, Tension clamp connection |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min | 0.5 mm² |
| GTIN (EAN) | 4032248232932 |
| Wire connection cross section, finely stranded, max | 1.5 mm² |
| 额定功率 | < 300 mW |
| Descriptive text technical data | End plate AP MCZ 1.5: 8389030000Accessories and dimensional drawings: refer to the MCZ Accessories page. |
| Contact material | AgSnO |
| eClass 9*1 | 27-37-16-01 |
| Pull-in/drop-out voltage, typ | 25 V / 6 V DC |
| eClass 9*0 | 27-37-16-01 |
| Rated control voltage | 48 V…110 V DC +25 % / -30 % |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max | 1.5 mm² |
| Open sides | right |
| Wire cross-section, solid, min | 0.5 mm² |
| UNSPSC | 30-21-19-17 |
| Height (inches) | 3.583 inch |
| Operating temperature | -25 °C...70 °C |
| eClass 5*1 | 27-37-16-01 |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max | 1.5 mm² |
| Creepage and clearance distance input – output | ≥ 5.5 mm |
| ETIM 4*0 | EC001437 |
| ETIM 5*0 | EC001437 |
| Blade size | 0.6 x 3.5 mm |
| Contact design | NO contact |
| Rated switching voltage | 250 V AC |
| Dielectric strength to mounting rail | 4 kVeff / 1 min. |
| Depth (inches) | 2.488 inch |
| Clamping range, rated connection, min | 0.5 mm² |
| Wire cross-section, finely stranded, min* (AWG) | AWG 26 |
| eClass 6*2 | 27-37-16-01 |
| 湿度 | 95 % for 30 days, minimal condensation to EN 50155 |
| Switch-on delay | < 4 ms |
| 深度 | 63.2 mm |
| AC switching capacity (resistive), max | 1500 VA |
| Storage temperature | -40 °C...85 °C |
| Min* switching power | 100 mA @ 12 V |
| Wire connection cross-section, finely stranded, min | 0.5 mm² |
| Dielectric strength input – output | 4 kVeff / 1 s |
| Declaration of Conformity | DE_PA_5600_160311_006.pdf |
| 标准 | DIN EN 50178, DIN EN 50155 |
| Wire cross-section, finely stranded, max* (AWG) | AWG 16 |
| eClass 8*1 | 27-37-16-01 |
| Protection degree | IP20 |
| No* of contacts | 1 |
| 额定电压 | 300 V |
| Wire connection cross section AWG, min | AWG 26 |
| Width (inches) | 0.24 inch |
| Wire connection method | Tension clamp connection |
| 宽度 | 6.1 mm |
| Rated current DC | < 3 mA |
| ETIM 6*0 | EC001437 |
| Clamping range, rated connection | 1.5 mm² |
| Wire connection cross section AWG, max | AWG 16 |
| Stripping length, rated connection | 8 mm |
| 身高 | 91 mm |
| DC switching capacity (resistive), max | 120 W @ 24 V |
| Max* reset time after voltage interruption | 10 ms |
| Switch-off delay | < 100 ms |
| Surge voltage category | III |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min | 0.5 mm² |
| Clamping range, rated connection, max | 1.5 mm² |
| Protective circuit | Free-wheel diode, Reverse polarity protection |
| Max* switching voltage, DC | 250 V |
| ROHS | Conform |
| Note: room temperature (service) | +85 °C for 10 minutes |
