weidmuller

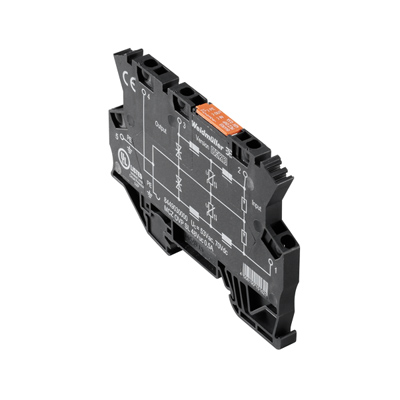

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 标准包装 | Bulk |
| 系列 | * |
| 其他名称 | MCZ OVP CL 48 VAC/DC |
| RoHS指令 | Lead free / RoHS Compliant |
| Wire connection cross section AWG, min | AWG 26 |
| Wire connection cross-section, finely stranded, min | 0.5 mm² |
| Volume resistance | 2.50 Ω |
| ETIM 3*0 | EC000943 |
| Pollution severity | 2 |
| Mounting rail | TS 35 |
| Engineering data | EPLAN |
| Net weight | 23.7 g |
| eClass 9*1 | 27-13-08-07 |
| Requirements category acc* to IEC 61643-21 | D1 |
| eClass 7*1 | 27-37-16-04 |
| 宽度 | 6 mm |
| Rated voltage (DC) | 48 V |
| 版本 | MCZ SERIES, Surge protection for instrumentation and control, 48 V, 0.5 A |
| Max* continuous voltage, Uc (AC) | 53 V |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min | 0.5 mm² |
| GTIN (EAN) | 4008190151621 |
| 响应时间 | ≤ 100 ps |
| Protection level on output side Wire-wire 1 kV/µs, typically | 160 V |
| 分类 | Instrumentation and Control |
| Height with TS 35 | 63.5 mm |
| Descriptive text technical data | See derating curve in the introductory text chapter in Catalogue 4.4 |
| eClass 6*2 | 27-13-08-02 |
| Wire connection method | Spring connection |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max | 1.5 mm² |
| Wire connection cross section AWG, max | AWG 16 |
| eClass 5*1 | 27-14-11-27 |
| Wire cross-section, solid, min | 0.5 mm² |
| UNSPSC | 30-21-18-11 |
| Height (inches) | 3.583 inch |
| Operating temperature | -40 °C...60 °C |
| Fuse | 0.5 A |
| Operating voltage | 53 V |
| Rated voltage (DC), max | 70 V |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max | 1.5 mm² |
| Limiting frequency (-3 dB) at load resistance | 500 kHz 240 Ω |
| ETIM 4*0 | EC000381 |
| Operating current, Imax | 0.5 A |
| Load resistance (for limiting frequency) | 240 Ω |
| ETIM 5*0 | EC000381 |
| Blade size | 0.6 x 3.5 mm |
| Protection level on output side Wire-PE 1kV/µs, typically | 82 V |
| ETIM 6*0 | EC000943 |
| Surge voltage category | III |
| Depth (inches) | 2.5 inch |
| Clamping range, rated connection, min | 0.5 mm² |
| 颜色 | Black |
| Inductance L and L1 | 75 µH |
| Lightning test current Iimp (10/350 µs) | 1 kA |
| Width (inches) | 0.236 inch |
| 深度 | 63.5 mm |
| Rated current IN | 0.5 A |
| Storage temperature | -40 °C...85 °C |
| Rated voltage (AC/DC) | 48 V |
| Declaration of Conformity | CE PAPER |
| Wire cross-section, finely stranded, min* (AWG) | AWG 26 |
| Wire cross-section, finely stranded, max* (AWG) | AWG 16 |
| eClass 8*1 | 27-37-16-04 |
| Protection degree | IP20 |
| Protection level on output side Wire-PE 8/20 µs, typically | 150 V |
| UL 94 flammability rating | V-0 |
| 额定电压 | 48 V |
| 类型 | MCZ OVP SL 48VUC 0,5A |
| Type of connection | Tension clamp connection |
| Wire connection cross section, finely stranded, max | 1.5 mm² |
| Descriptive text accessories | End plateAP MCZ 1,5 SW: 1046410000 |
| Clamping range, rated connection | 1.5 mm² |
| AC/DC/UC | AC/DC |
| Certificate No* (UL) | E311081 |
| Wire cross-section, solid, max | 1.5 mm² |
| Stripping length, rated connection | 8 mm |
| 身高 | 91 mm |
| eClass 9*0 | 27-37-16-04 |
| Cross-section | 1.5 mm² |
| 设计 | Terminal |
| Discharge current, max* (8/20 µs) | 5 kA |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min | 0.5 mm² |
| Clamping range, rated connection, max | 1.5 mm² |
| Discharge current, Iimp (10/350 µs) | 1 kA |
| Protection level on output side Wire-wire 8/20 µs, typically | 300 V |
| ROHS | Conform |
| Rated voltage (AC) | 48 V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
