weidmuller

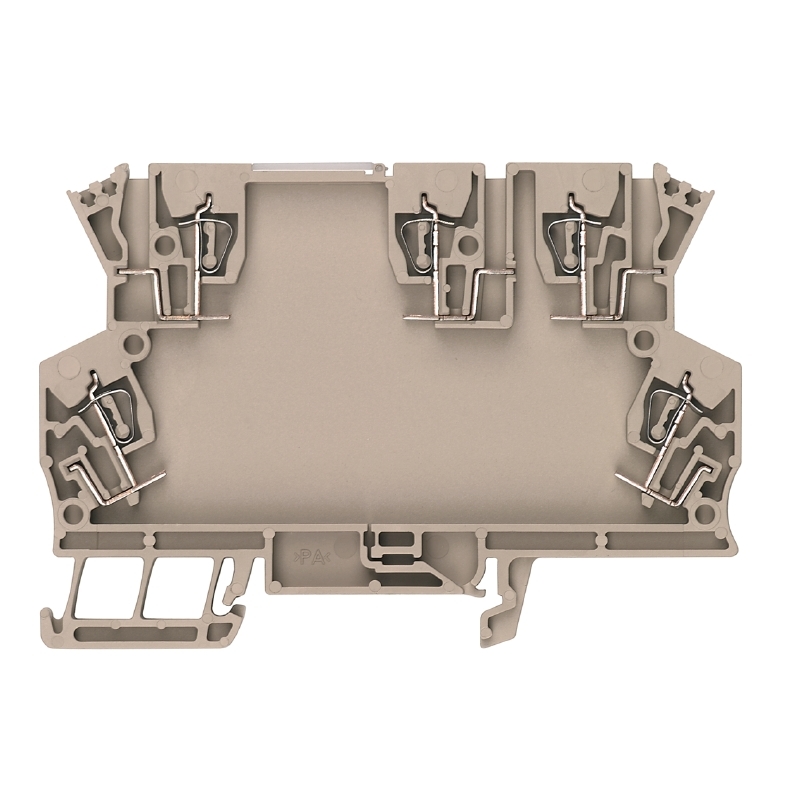

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 楼层数 | 2 |
| 线规或范围 - mm² | 0.5-2.5mm² |
| 标准包装 | 1 |
| 端接类型 | Push In, Spring |
| 线规或范围 - AWG | 14-26 AWG |
| 位置数 | 5 |
| 电流 - IEC | 10A |
| 电压 - IEC | 400V |
| 材料阻燃等级 | UL94 V-0 |
| 类型 | Isolated |
| 终端 - 宽度 | 6.0mm |
| RoHS指令 | Lead free / RoHS Compliant |
| Contact to terminal rail | No |
| ETIM 3*0 | EC001284 |
| Continuous current of cross-connection/PCB | 32 A |
| Storage temperature, min | -25 °C |
| Net weight | 1,662 g |
| eClass 7*1 | 27-27-09-90 |
| 宽度 | 6 mm |
| 版本 | Terminal support |
| GTIN (EAN) | 4008190398545 |
| Max* relative humidity during storage | 80 % |
| CTI | ≥ 600 |
| Contact material | CuZn |
| Continuous current of cross-connection | 10 A |
| Length (inches) | 3.583 inch |
| Insulating material group | IIIa |
| Type of connection | Tension clamp connection |
| UNSPSC | 30-21-18-01 |
| Height (inches) | 2.48 inch |
| Temperature range, installation, max | 120 °C |
| Contact surface | tinned |
| Contact base material | CuZn |
| eClass 9*0 | 27-27-09-90 |
| Number of connection levels | 2 |
| 颜色 | grey-beige |
| eClass 6*2 | 27-27-09-90 |
| Operating temperature, max | 120 °C |
| 长度 | 91 mm |
| Width (inches) | 0.236 inch |
| Max* power loss | 0.8 W |
| Cross-connection | Yes |
| Protection degree | IP20 |
| Number of connections | 5 |
| Temperature range, installation, min | -25 °C |
| PCB thickness | 1 mm |
| UL 94 flammability rating | V-0 |
| Storage temperature, max | 55 °C |
| Number of PCBs per module | 1 |
| 身高 | 63 mm |
| Operating temperature, min | -50 °C |
| eClass 8*1 | 27-27-09-90 |
| Tolerance for the PCB shape | ±0.1 mm |
| Type of contact to PCB | Solder connection, direct |
| Encapsulation option | Yes |
| ROHS | Conform |
