weidmuller

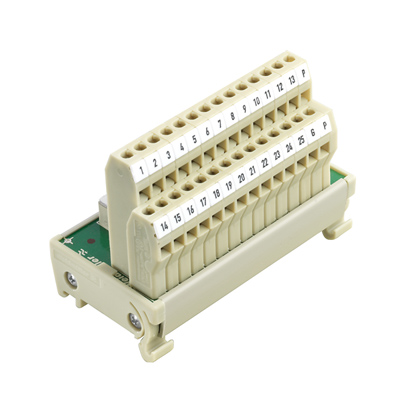

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 电压 - 额定 | 125VAC, 150VDC |
| 程端连接 | Terminal Blocks - Screw Connection |
| 工作温度 | 0°C ~ 55°C |
| 控制端电缆固定 | Jackscrew Socket, 4-40 Mating Thread |
| 宽度 | 1.77" (45.00mm) |
| 长度 | 3.39" (86.00mm) |
| 控制端连接 | D-Sub, Female |
| 标准包装 | 1 |
| 位置/电极 | 25 |
| 额定电流（每触点） | 1.5A |
| 其他名称 | RD/25JS/FEMALE |
| Clamping range, min | 0.15 mm² |
| ETIM 3*0 | EC001419 |
| Clamping range, max | 1.5 mm² |
| Flexible with sleeve, min | 0.5 mm² |
| Height (inches) | 2.579 inch |
| Number of poles (control side) | 25-pole female |
| 版本 | Interface, RSSD, D-sub connectors, acc. to IEC 60807 / DIN 41652, 25-pole female, Screw connection |
| Protective earth connection | Flat-blade contact |
| GTIN (EAN) | 4008190127343 |
| 类型 | RS SD25B UNC LPK2 |
| eClass 7*1 | 27-14-11-52 |
| Flexible, min* H05(07) V-K | 0.5 mm² |
| Rated current per connection | 1.5 A |
| Length (inches) | 3.386 inch |
| Pulse voltage test (1,2/50μs) | 0.8 kV |
| eClass 9*1 | 27-14-11-52 |
| UNSPSC | 30-21-18-01 |
| Design of locking system | UNC 4/40 |
| Rated insulation voltage | 100 V |
| Connection (field side) | LPK 2H 5.08mm |
| Operating temperature | 0...55°C |
| eClass 5*1 | 27-24-22-04 |
| eClass 8*1 | 27-14-11-52 |
| ETIM 4*0 | EC001421 |
| ETIM 5*0 | EC001421 |
| Earthing | Yes |
| eClass 9*0 | 27-14-11-52 |
| Solid, max* H05(07) V-U | 6 mm² |
| Flexible, max* H05(07) V-K | 4 mm² |
| eClass 6*2 | 27-24-22-04 |
| Sleeve with plastic collar, max | 2.5 mm² |
| Max* wire cross-section, AWG [field] | AWG 12 |
| Net weight | 137 g |
| Width (inches) | 1.772 inch |
| Storage temperature | -40...70 °C |
| Connection on control side | D-sub connectors, acc. to IEC 60807 / DIN 41652 |
| Declaration of Conformity | K319_01_11.pdf |
| 额定电压 | 100 V |
| Tightening torque, min | 0.5 Nm |
| Min* wire cross-section, AWG [field] | AWG 26 |
| Descriptive text accessories | Refer to the "Universal cables PAC-UNIV" section in chapter F |
| Stripping length | 6 mm |
| Tightening torque, max | 0.6 Nm |
| 身高 | 65.5 mm |
| Flexible with sleeve, max | 2.5 mm² |
| Solid, min* H05(07) V-U | 0.5 mm² |
| According to | DIN EN 50178 |
| Surge voltage category | II |
| ETIM 6*0 | EC002780 |
| Pollution severity level | 2 |
| Type of connection | Screw connection |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
