weidmuller

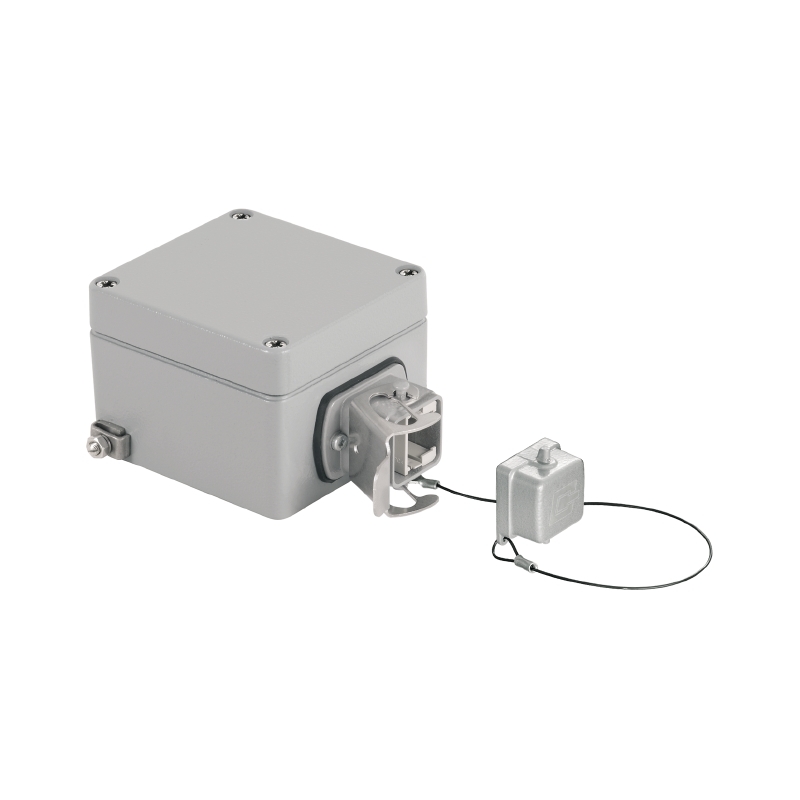

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品特点 | IP67 |
| 颜色 | Gray |
| 附件类型 | Housing with Cover |
| 配用/相关产品 | Modular RJ45 Jack |
| 标准包装 | 1 |
| 其他名称 | IE-OM-V05M-K11-1S |
| RoHS指令 | Lead free / RoHS Compliant |
| ETIM 3*0 | EC001084 |
| Net weight | 449 g |
| Housing main material | Al - Si 12 |
| 宽度 | 75 mm |
| 版本 | Junction box, IP67, Variant 5, 1 port, straight |
| GTIN (EAN) | 4032248658459 |
| 类型 | IE-OM-V05M-K11-1S |
| Length (inches) | 5.512 inch |
| eClass 9*0 | 19-17-01-25 |
| Type of mounting | Floor-mounted, Wall mounting |
| UNSPSC | 30-21-18-18 |
| PROFINET Manufacturer's Declaration | PN Manufacturer Declaration.pdf |
| Operating temperature | -40 °C...70 °C |
| eClass 5*1 | 19-07-04-01 |
| eClass 8*1 | 19-17-01-25 |
| ETIM 4*0 | EC000439 |
| ETIM 5*0 | EC000439 |
| Depth (inches) | 2.244 inch |
| 颜色 | Grey |
| eClass 7*1 | 27-25-05-04 |
| GOST Approval | POCC DE.ME25.B01411.pdf |
| Connector standard | IEC 61076-3-106 Var. 5 |
| 深度 | 57 mm |
| Protection degree | IP67 |
| Width (inches) | 2.953 inch |
| ETIM 6*0 | EC000439 |
| 长度 | 140 mm |
| Sheath diameter, max | 10 mm |
| Plugging cycles | 750 |
| eClass 6*2 | 27-25-05-04 |
| Sheath diameter, min | 5 mm |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
