Weidmuller

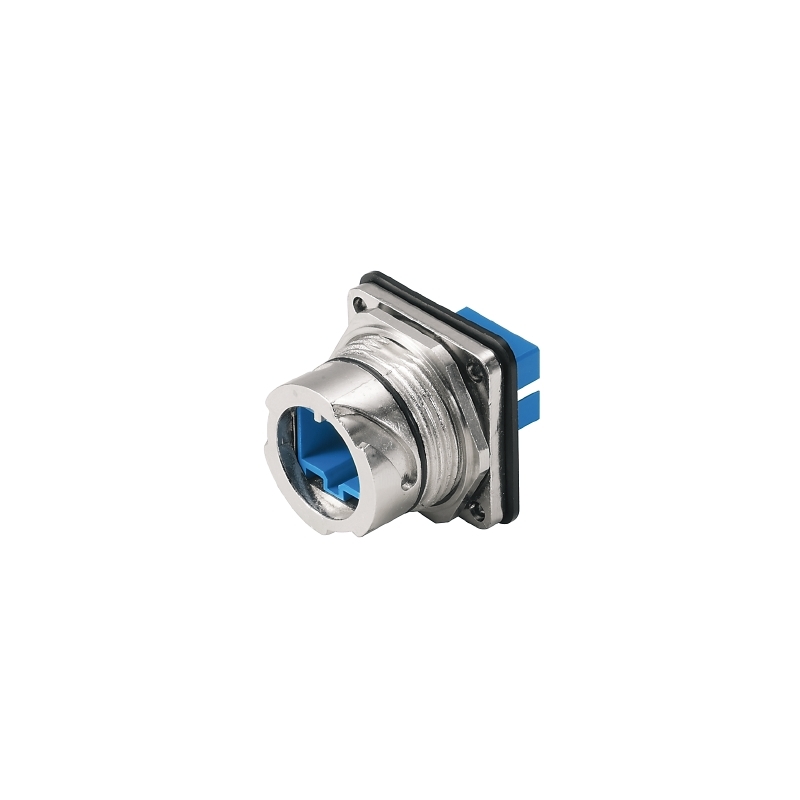

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 防护等级 | IP67 - Dust Tight, Waterproof |
| 安装类型 | Panel Mount, Square Flange |
| 转换到（适配器端） N插孔，母插口 | SCRJ Receptacle |
| 颜色 | Silver |
| 类型 | Adapter |
| 转换源（适配器端） N插孔，母插口 | SC Receptacle |
| 标准包装 | 1 |
| 外壳材料 | Zinc Die Cast |
| 工作温度 | -40°C ~ 70°C |
| 模式 | Singlemode |
| 其他名称 | IE-BS-V01M-SCRJ2SC-SM |
| RoHS指令 | Lead free / RoHS Compliant |
| 插入损耗 | ≤ 0.5 dB |
| ETIM 3*0 | EC001121 |
| Net weight | 62.7 g |
| Housing main material | Zinc diecast |
| 版本 | Flange FO, IP67, Version 1, coupling from SCRJ on 2*SC, Singlemode |
| GTIN (EAN) | 4032248645534 |
| eClass 9*0 | 19-17-01-25 |
| UNSPSC | 30-21-18-17 |
| Operating temperature | -40 °C...70 °C |
| eClass 5*1 | 27-26-12-03 |
| eClass 8*1 | 19-17-01-25 |
| Seal material | NBR |
| ETIM 5*0 | EC000437 |
| 连接1 | SC |
| 连接2 | SCRJ |
| eClass 9*1 | 19-07-01-22 |
| 颜色 | Miscellaneous |
| eClass 7*1 | 27-25-05-04 |
| GOST Approval | POCC DE.ME25.B01411.pdf |
| Connector standard | IEC 61076-3-106 Var. 1, IEC 61754-4, IEC 61754-24 |
| Fibre type | Singlemode |
| Return loss (attenuation) | ≥ 40 dB |
| Description of article | Version 1, coupling from SCRJ on 2*SC |
| Protection degree | IP67 |
| ETIM 4*0 | EC000437 |
| ETIM 6*0 | EC001122 |
| Plugging cycles | 500 |
| eClass 6*2 | 27-26-12-03 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
